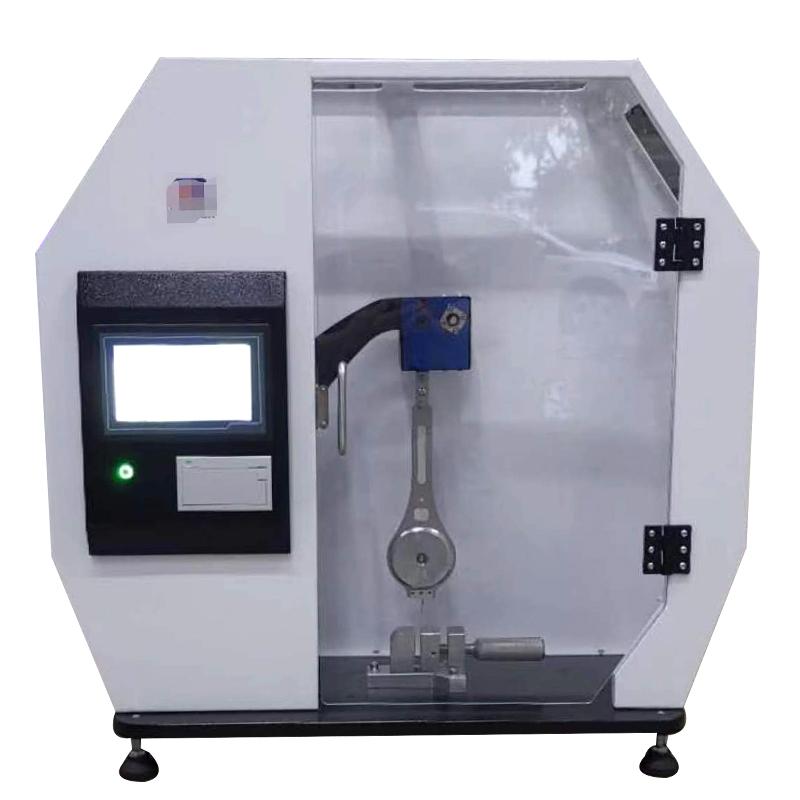

ShuChang SC-XJZH Suspension Impact TesterOverview
Specifications
Comments
FAQs

SC-XJZH

Suspension Impact Tester

Cantilever beam 1/2.75/5.5J, simply supported beam 0.5/1/2/4/5 J, using semi-automatic control, LCD display supports printout.

product description

This series of digital display cantilever beam impact testing machine is an instrument for testing the impact resistance of non-metallic materials such as hard plastics, nylon, hard rubber, and electrical insulation materials under dynamic loads. It is required by non-metallic material manufacturers and quality inspection departments. It is also an indispensable testing instrument for scientific research units to conduct research on new materials.

main feature

This machine adopts semi-automatic control, easy to operate and high working efficiency.
The special LCD equipped with this machine can display instant information.
Printable output.

Implementation standards

ISO180-2000 "Plastics - Determination of Izod Impact Strength of Hard Materials"

GB/T1843—2008 "Rigid Plastic Izod Impact Test Method"

JB/T8761—1998 "Plastic Izod Impact Testing Machine"

ASTM D256-2010 "Test method for determining the impact strength of plastic IZOD pendulum"

ShuChang SC-XJZH Suspension Impact TesterSpecifications

LIST	VALUE
Impact velocity	3.5m/s
The distance from the center of the pendulum axis to the center of the specimen	327mm
blade angle	750
Blade fillet radius	0.8mm
Bearing fillet radius	without
Support front angle	without
Support back angle	without
blade rake angle	50
blade back angle	100
bearing span	without
Impact energy	Cantilever Beam 2.75J, 5.5J or Maximum Impact Energy Specified by User
Pendulum elevation angle	150°
Power Supply	AC 220V 50Hz
Dimensions	360×240×680mm
net Weight	Approx. 80kg
Sample type and size	Type 1 sample: 80 × 10 × 4mm3; Type 2 sample: 63.5 × 12.7 × 6.4mm3; Type 3 sample: 63.5 × 12.7 × 3.2mm3
cantilever beam	2.75J、5.5J
maximum allowable friction loss	0.06J、0.12J
Pendulum moment	1.47372N·m、2.9474N·m

ShuChang SC-XJZH Suspension Impact Tester Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

I want to test the Impact Strength of rigid plastics, which instrument should I choose?

[A]

SC-XJZH suspension simple combination Impact Tester is specially used for impact performance testing of non-metallic materials such as hard plastics and nylon. It meets international and domestic standards such as ISO180 and GB/T1843, and can accurately measure the anti-Impact ability of materials under dynamic load. Easy to operate and high efficiency.
