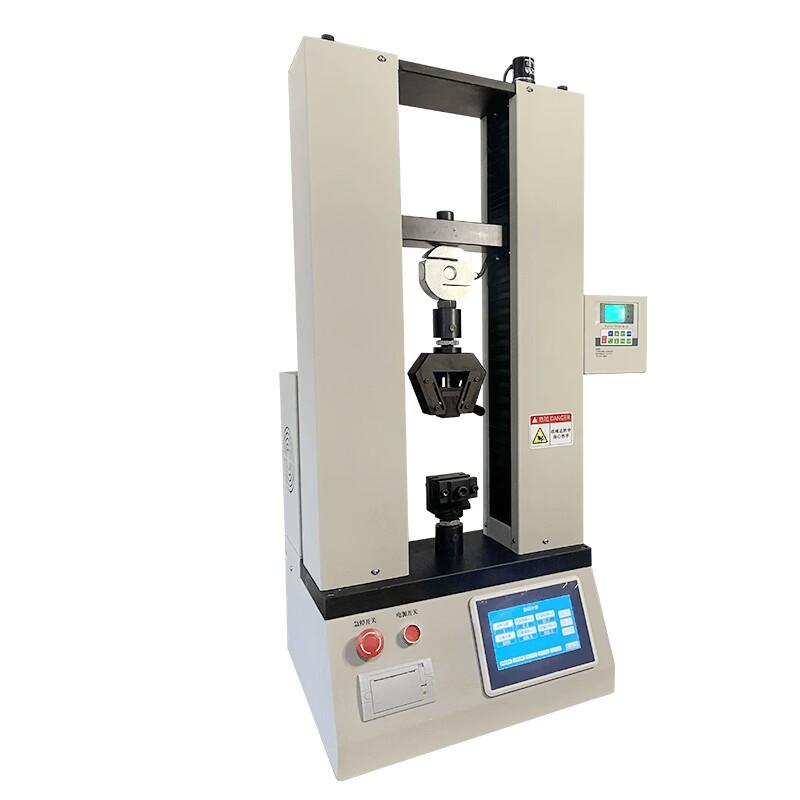

HBO HDS-20KN Tensile Tester load 20KN

Introduction

This series of Tensile Testing Machines adopts high-torque stepping motors, high-precision encoders, super-large touch screens, and built-in double-column structure. It has the advantages of good stability, wide application range, beautiful appearance, and convenient use. Control, manual (jog), automatic, automatic control of the number of movements, in-position delay and a series of functions. It is widely used in testing fields such as push-pull load, insertion force, destructive test, etc.

Features

• High precision, high resolution, high stability.

• It adopts high-torque stepping motor and high-precision encoder.

• Super large 7-inch touch LCD display, friendly human-computer interaction interface, easy to operate.

• The operating speed can be set, and the setting is wide, which can adapt to various test speed requirements (speed controllable).

• The running distance can be set, and after running to the set position, it can be held with a delay, run in reverse, and stop immediately (displacement is controllable).

• Real-time display of displacement, running speed, and movement direction (upward is positive +, downward is negative -).

• Provide automatic counting, automatic timing, stretch rate test, fully automatic programming, and various test modes.

• In the fully automatic programming mode, 5 different test displacements and 5 different test speeds can be customized to complete the test conveniently and quickly.

• Force holding function: to the specified position or setting force value, the holding time can be set freely.

• Set force value reciprocating motion function: set force value reciprocating motion, force value setting stop, hold time, and movement times can be set freely.

• Pull and press stop function: Stop immediately after the force applied to the measured object disappears.

• Overload protection: limit protection, external overload automatic stop protection; the equipment has an emergency stop switch, when the switch is pressed, the entire transmission system stops immediately, and the transmission system can only be used when the switch is unscrewed.

• The product is equipped with micro-printing, and the test data can be printed directly.

• Communication interface: connect the data cable, can communicate with the computer, and automatically change the maximum value, minimum value and average value.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
