CHINA ZS-1.5F small batch mixing Disperser explosion-proof motor without barrel
3 kW, explosion-proof motor, frequency conversion speed regulation electric lifting, lifting stroke 700mm, length, width and height: 620 * 580 * 1620mm, material bucket is optional.
Factory-
QIWEI JFS-2200 Three-phase Asynchronous Disperser 380V Handling Capacity 60kg
$ 929.00 -
MUXUAN MXF-A1.5Q Small batch mixing Disperser Frequency conversion Disperser Full explosion-proof type
$ 1625.00 -
Qiwei JFS-7500 High Efficiency Three-Phase Asynchronous Disperser
$ 1838.00 -
MODERNER KS-370B Coating Blue-devil Dispersion Testing Machine, Column Clamping Bottle Type
Login -
PUSHEN JSF-550B Stirring and Dispersing Machine (Explosion-proof)
$ 1398.00
The pilot small batch frequency conversion dispersing machine is a kind of equipment used in the laboratory or pilot stage for the process of dispersing, mixing and stirring liquid or powdery substances. It adopts frequency conversion technology and can adjust the speed and power to meet different process requirements.
The equipment usually consists of a host machine and a stirring device. The host computer contains components such as motors, control panels, and frequency converters, which are used to control the operating parameters of the equipment. The stirring device is driven by the host to mix and disperse liquid or powdery substances.
Pilot-scale small-batch variable frequency dispersing machines are widely used in chemical, pharmaceutical, food, paint, ink and other industries. It can be used to research new product formulas, optimize production processes, improve product quality, etc. Due to the adjustable speed and power, this equipment has high flexibility and adaptability when processing materials of different viscosities, concentrations and particle sizes.

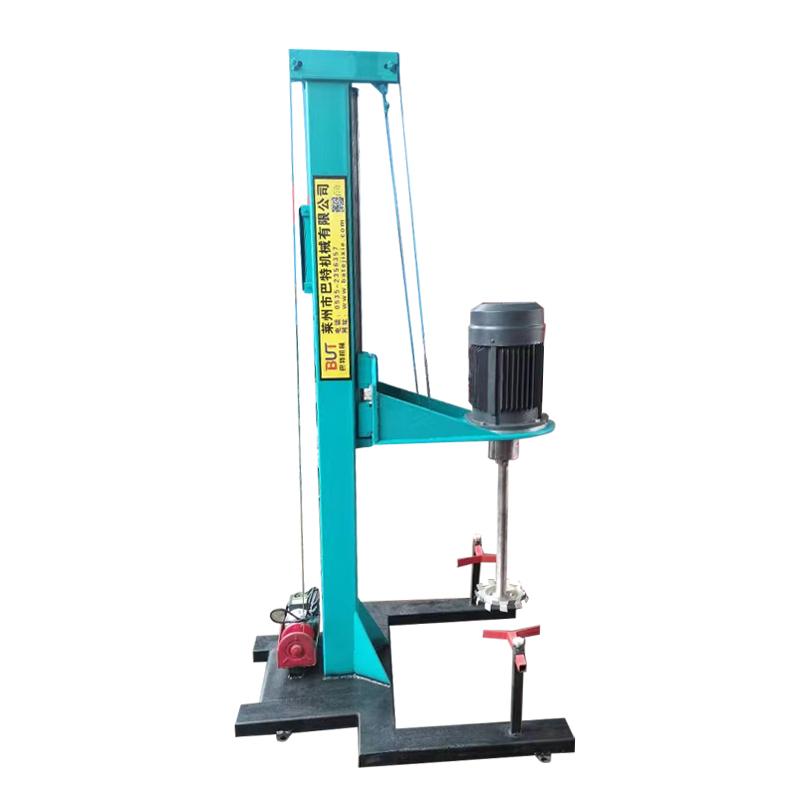

Factory ZS-1.5F Small Batch Mixing DisperserSpecifications
| LIST | VALUE |
|---|---|
| Motor Power | 2.2KW |
| Lifting stroke | 600mm |
| Processing Capacity | 0~100L |
| dispersion disk | 150mmx1、 200mmx1 |
| Dimensions | 860×760×1650mm |
| Barrel | other |
| Lifting method | Electric lift |
| explosion-proof | Explosion-proof motor, explosion-proof plug, explosion-proof threading tube |
Factory ZS-1.5F Small Batch Mixing Disperser Packing list
host X1, mixing head X1, manual X1, certificate of conformity X, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
