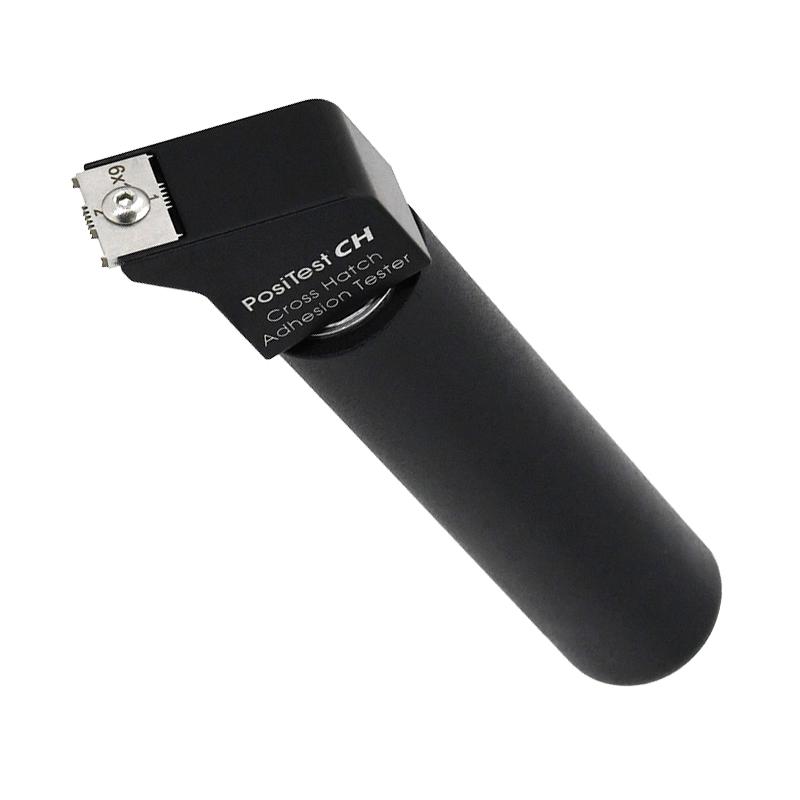

Defelsko CHKITISO6X3 Cross-cut Adhesion Tester

Defelsko PosiTest CH Cross-cut Adhesion Tester Set ISO2409 23mm/6 Teeth

Number of cutter teeth 6, cutter tooth spacing 2mm, suitable for film thickness environment 121~ 250μm, cutter head material hardened, application standard ISO 2409.

Brand

SKU: NB044008

Defelsko

Model

CHKITISO6X3

Get Quote

Defelsko shop

Information

Datasheet Catalog Manual

What else did others buy

TRUIT TR 5001/4 Single Sided Cross Hatch Cutter 2mm/6 Tooth

$ 145.00
JFL QFH-S600 adhesion plate (guide grid)

$ 141.00
TQC SP1706 cross-cut cutter head 11 teeth, spacing 1.5mm for CC2000/CC3000 series

$ 361.00
TRUIT TR 5006/2 adhesion cross-cut plate cross-cut number 11

$ 145.00
QFH Cross Hatch Cutter 1/2/3 mm Tooth QFH Cross Hatch Cutter 11 Tooth

$ 178.00

Genuinegoods

Defelsko CHKITISO6X3 Cross-cut Adhesion TesterOverview
Specifications
Comments
FAQs

CHKITISO6X3

Cross-cut Adhesion Tester

Number of cutter teeth 6, cutter tooth spacing 2mm, suitable for film thickness environment 121~ 250μm, cutter head material hardened, application standard ISO 2409.

Introduction

Cross-scratch adhesion TesterAccording to ISO 2409 and ASTM D3359, the ability of the coating to resist separation from the substrate is determined when cutting a lattice pattern on the coating.

All tools and accessories needed to perform the cross-scratch test are included.Ergonomically designed tool grip with non-slip grip for comfortable all-day use.The rotatable cutting head ensures proper positioning and uniform cutting surface pressure.Easy-to-change, hardened steel blade with 4 cutting edges for longer testing.Tapes are available in accordance with ISO 2409 or ASTM D3359.

peculiarity

Includes all tools and accessories required for cross-scratch testing in accordance with ISO 2409 and ASTM D3359

Ergonomically designed tool grip with non-slip grip for comfortable all-day use

The rotatable cutting head ensures proper positioning and uniform cutting surface pressure

Easy to replace, hardened steel blade with 4 cutting edges for longer testing

Suitable for coating thicknesses up to 250 μm (10 mm), depending on the blade and standard

Available in a wide range of 4-in-1 cutting blades with different standards, coating thicknesses and substrates, the tool is compatible with all DeFelsko cutting blades

Illuminated magnifiers with 3x or 10x magnification are available according to the standard

A brush is included to remove debris from the coating

Adhesive tapes are available in accordance with ISO 2409 or ASTM D3359

The durable hard-shell case keeps the contents safe

Meets standards

ISO 2409/16276-2, ASTM D3359, AS 3894.9/1580.408.4, JIS K 5600-5-6.

Optional kits

The PosiTest CH Cross Scratch Adhesion Test is available in 5 sets, 3 of which are ISO 2409 compliant and 2 are ASTM D3359 compliant.

Use the table below to select the appropriate blade based on the standard and the thickness of the coating to be tested.

Coating thickness environment	Blade specifications	Kit model
ISO2409
0~60μm	1mm/6 teeth	CHKITISO6X1
61~120μm	2mm/6 teeth	CHKITISO6X2
121~250μm	3mm/6 teeth	CHKITISO6X3
*For soft substrates (e.g. wood and plaster), use a 2mm/6-tooth blade when the coating thickness is between 0~120μm.
ASTM D3359
0~50μm	1mm/11 teeth	CHKITASTM11X1
51~125μm	2mm/6 teeth	CHKITASTM6X2

Defelsko CHKITISO6X3 Cross-cut Adhesion TesterSpecifications

LIST	VALUE
Number of teeth	6 teeth
Tooth spacing	2mm
Applicable film thickness environment	121~250μm
Cutter head material	Harden just
Application standard	ISO 2409

Defelsko CHKITISO6X3 Cross-cut Adhesion Tester Packing list

Host X1, operation manual X1, waterproof bag X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
