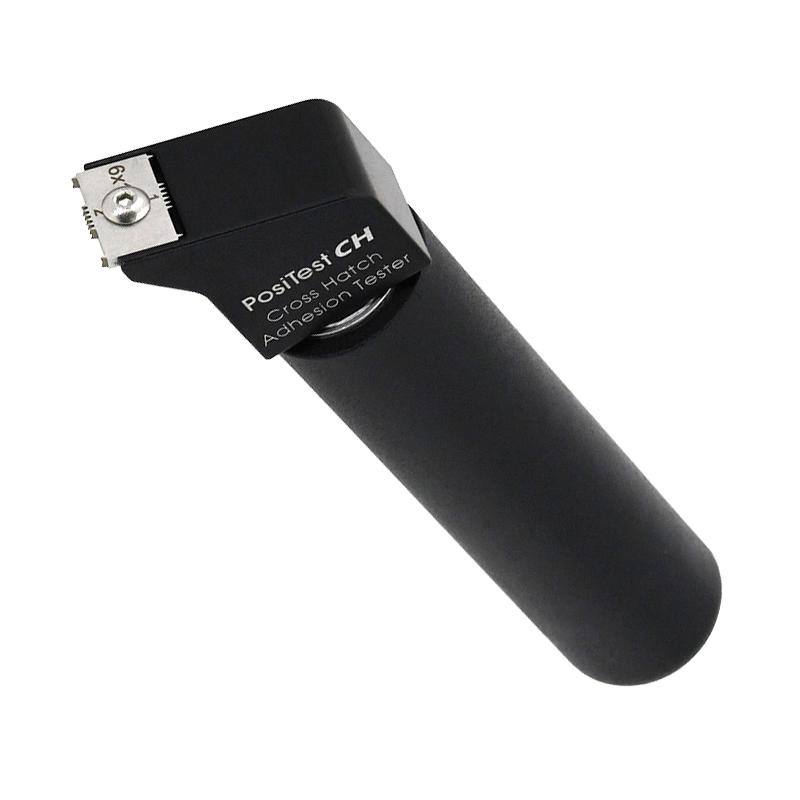

Defelsko PosiTest CH Cross-cut Adhesion Tester Set ASTM D3359 2mm/6 Tooth
Number of cutter teeth 6, cutter tooth spacing 2mm, suitable for film thickness environment 0~50μm, cutter head material hardened, the application of standard ASTM D3359.
Defelsko
CHKITASTM6X2
-
PUSHEN HGQ 2 * 5 multi-edge cross-cut Tester number of teeth 6 teeth, spacing 2mm
$ 179.00 -
TRUIT TR 5001/2 Cross-cut adhesion instrument 1mm/11 teeth
$ 145.00 -
QFH-A cross-cut adhesion Tester YONGLIDA standard 3 swirl/spin cutter heads
$ 176.00 -
TQC SP3000 Adhesion Tester Cross-cut Guide Gauge/Baige Plate 6-in-1 Multifunctional Adhesion Tester
$ 326.00 -
TQC SP1703 cross-cut cutter head 6 teeth, spacing 2mm for CC2000/CC3000 series
$ 346.00
Introduction
Cross-scratch adhesion TesterAccording to ISO 2409 and ASTM D3359, the ability of the coating to resist separation from the substrate is determined when cutting a lattice pattern on the coating.
All tools and accessories needed to perform the cross-scratch test are included.Ergonomically designed tool grip with non-slip grip for comfortable all-day use.The rotatable cutting head ensures proper positioning and uniform cutting surface pressure.Easy-to-change, hardened steel blade with 4 cutting edges for longer testing.Tapes are available in accordance with ISO 2409 or ASTM D3359.
peculiarity
Includes all tools and accessories required for cross-scratch testing in accordance with ISO 2409 and ASTM D3359
Ergonomically designed tool grip with non-slip grip for comfortable all-day use
The rotatable cutting head ensures proper positioning and uniform cutting surface pressure
Easy to replace, hardened steel blade with 4 cutting edges for longer testing
Suitable for coating thicknesses up to 250 μm (10 mm), depending on the blade and standard
Available in a wide range of 4-in-1 cutting blades with different standards, coating thicknesses and substrates, the tool is compatible with all DeFelsko cutting blades
Illuminated magnifiers with 3x or 10x magnification are available according to the standard
A brush is included to remove debris from the coating
Adhesive tapes are available in accordance with ISO 2409 or ASTM D3359
The durable hard-shell case keeps the contents safe
Meets standards
ISO 2409/16276-2, ASTM D3359, AS 3894.9/1580.408.4, JIS K 5600-5-6.
Optional kits
The PosiTest CH Cross Scratch Adhesion Test is available in 5 sets, 3 of which are ISO 2409 compliant and 2 are ASTM D3359 compliant.
Use the table below to select the appropriate blade based on the standard and the thickness of the coating to be tested.
| Coating thickness environment | Blade specifications | Kit model |
| ISO2409 | ||
| 0~60μm | 1mm/6 teeth | CHKITISO6X1 |
| 61~120μm | 2mm/6 teeth | CHKITISO6X2 |
| 121~250μm | 3mm/6 teeth | CHKITISO6X3 |
| *For soft substrates (e.g. wood and plaster), use a 2mm/6-tooth blade when the coating thickness is between 0~120μm. | ||
| ASTM D3359 | ||
| 0~50μm | 1mm/11 teeth | CHKITASTM11X1 |
| 51~125μm | 2mm/6 teeth | CHKITASTM6X2 |
Defelsko CHKITASTM6X2 Cross-cut Adhesion TesterSpecifications
| LIST | VALUE |
|---|---|
| Number of teeth | 6 teeth |
| Tooth spacing | 2mm |
| Applicable film thickness environment | 0~50μm |
| Cutter head material | Harden just |
| Application standard | ASTM D3359 |
Defelsko CHKITASTM6X2 Cross-cut Adhesion Tester Packing list
Host X1, operation manual X1, waterproof bag X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
