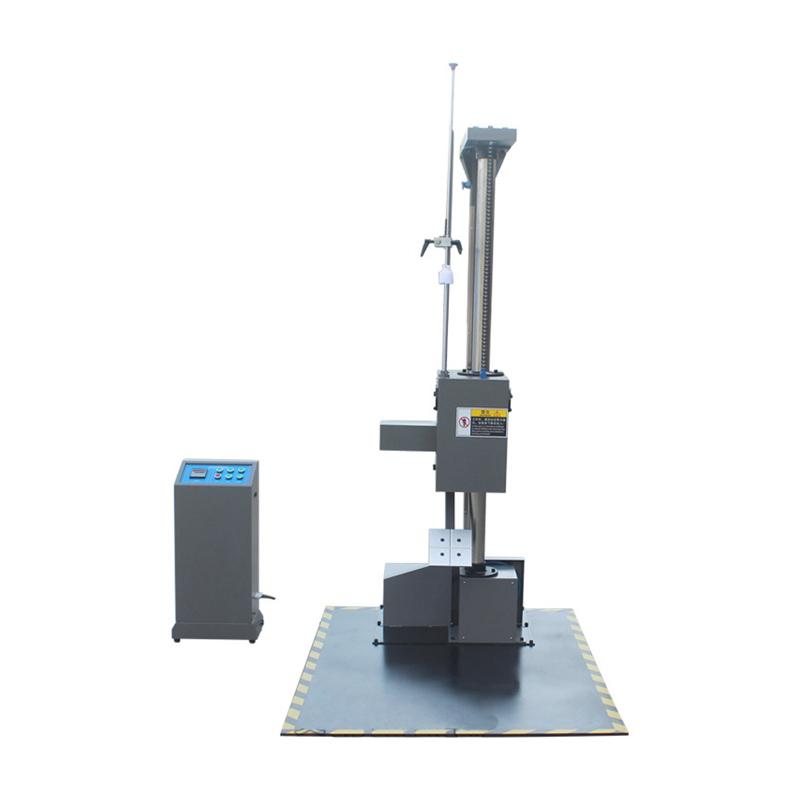

CHINA NBC-8516 single wing Dropping Tester

Introduction

Single-arm drop testing machine This machine is specially used to test the damage of product packaging caused by falling, and to evaluate the impact resistance during transportation and handling. Applicable standards: ISO2248 JISZ0202-87 GB/T4857.5-92

Machine features

The single-arm drop testing machine can conduct free drop tests on the faces, corners and edges of packages. It is equipped with a digital height display and uses a decoder for height tracking, so that it can accurately give the product drop height and the preset drop height. The error does not exceed 2% or 10MM. This machine adopts a single-arm double-column structure, with electric reset, electronically controlled drop and electric lifting devices, which is easy to use; the unique buffer device greatly improves the service life, stability and safety of the machine. Single arm setup for easy product placement.

Machine studio environment requirements

Temperature: 5℃～+28℃[1] (average temperature within 24 hours ≤28℃)

Relative Humidity: ≤85%RH

Power supply conditions: three-phase four-wire + protective ground wire,

Voltage range: AC (380±38) V

host X1, manual X1, warranty card X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
