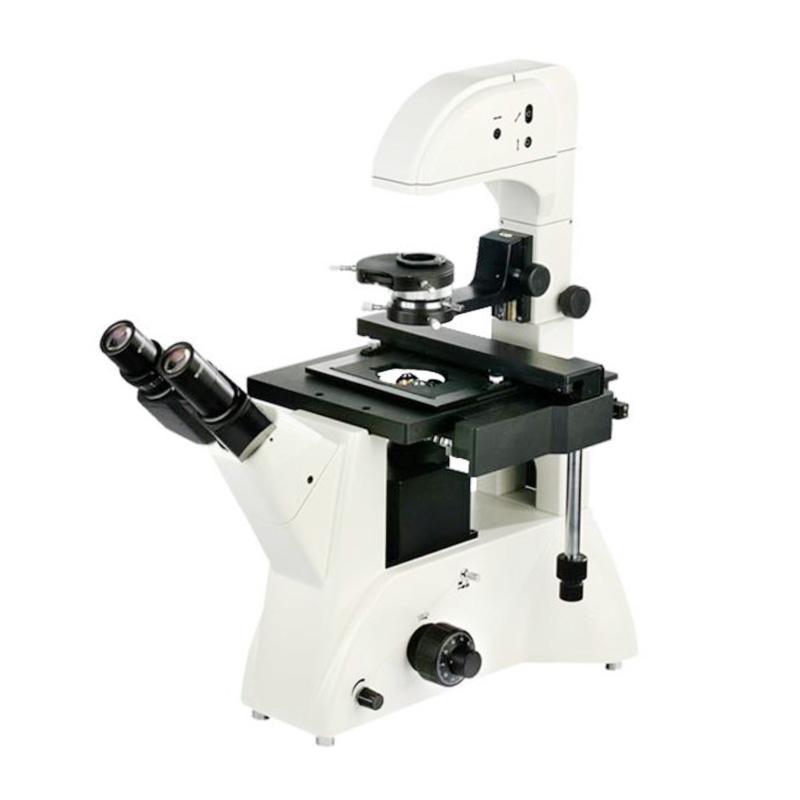

Varnishing BM-37XDD Computer Inverted Biological Microscope
Swirl/spin swing-out concentrating system, can be high culture dish or cylindrical flask for non-contaminated foster cell observation, ergonomic design, make the operation more convenient and comfortable, wider space.
SHSGBM-
TEELEN TL3001 Upright Fluorescence Microscope
Login -
Varnishing XSP-BM-2CBA Microscope Optical inspection Magnification 40X-1600X
$ 480.00 -
IPRE BH200M-W Computer-based Metallurgical Microscopy (excluding computer)
$ 1750.00 -
TEELEN XTL-20D Trinocular Fluorescence Microscope
Login -
TEELEN EC230 Microscope Camera
Login
Introduction
The BM-37XDD inverted biological microscope adopts an excellent infinity optical system. Equipped with a long working distance plan objective lens and a wide field of view eyepiece, the compact and stable high-rigidity body fully reflects the anti-vibration requirements of microscopic operations. The rotating swing-in and swing-out focusing system enables contamination-free observation of cultured cells in tall petri dishes or cylindrical flasks. The design that meets ergonomic requirements makes operation more convenient and comfortable, and the space is wider. This instrument is suitable for microscopic observation of cell tissues, transparent liquid tissues, and dynamic microscopic observation of cultured tissues in culture dishes. It can be used in scientific research institutes, colleges and universities, medical and health, inspection and quarantine, agriculture, animal husbandry, dairy and other departments.
Standard configuration
eyepiece:
| type | gain | focal length | Field of view diameter | Remark |
| Plan eyepiece | 10X | 25mm | Ï22mm | |
| reticle eyepiece | 10X | 25mm | Ï22mm | Optional (0.1mm/grid) |
Objective lens:
| Objective type | Magnification | numerical aperture | working distance | Cover glass thickness | Remark |
| Infinity long working distance plan achromatic objectives | 10X | 0.25 | 19.40mm | 1.2mm | |
| 20X | 0.4 | 8mm | 1.2mm | ||
| 40X | 0.6 | 3.5mm | 1.2mm | ||
| Infinity long working distance plan phase contrast objective | 10X | 0.25 | 4.3mm | 1.2mm | |
| 20X | 0.4 | 8mm | 1.2mm | Shop | |
| 40X | 0.65 | 3.5mm | 1.2mm | Shop |
SHSGBM BM-37XDD Computer Inverted Biological MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Mechanical barrel length | Infinity system (∞) |
| magnification | 100X-400X |
| Stage size | Size: 227mm × 208mm; Glass round platform size: φ 118mm; Movement range: 114mm × 77mm |
| Culture dish pallet one | 86Mm (Width) X129.5mm (Length), suitable for circular culture dishes φ 90mm |
| Culture dish pallet two | 34Mm (width) X77.5mm (length), can be adapted to round culture dishes φ 68.5mm |
| Culture dish pallet three | 57Mm (Width) X82mm (Length), suitable for circular culture dishes φ 60mm |
| Culture dish pallet four | 29Mm (Width) X77.5mm (Length), suitable for circular culture dishes φ 35mm |
| pupil distance | 53-75Mm, 45 ° tilted eyepiece barrel |
| condenser | Extra long working distance condenser, working distance 55mm, with phase contrast device |
| Color filter | Frosted Glass, Blue and Green Color Filters |
| lighting system | 6V30W halogen lamp, adjustable luminance and spatial position |
| Computer imagery system: | Digital CMOS camera 5 million pixels (with geometric measurement analysis software), MCL-Z adapter mirror. (Computer purchase) |
SHSGBM BM-37XDD Computer Inverted Biological Microscope Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
