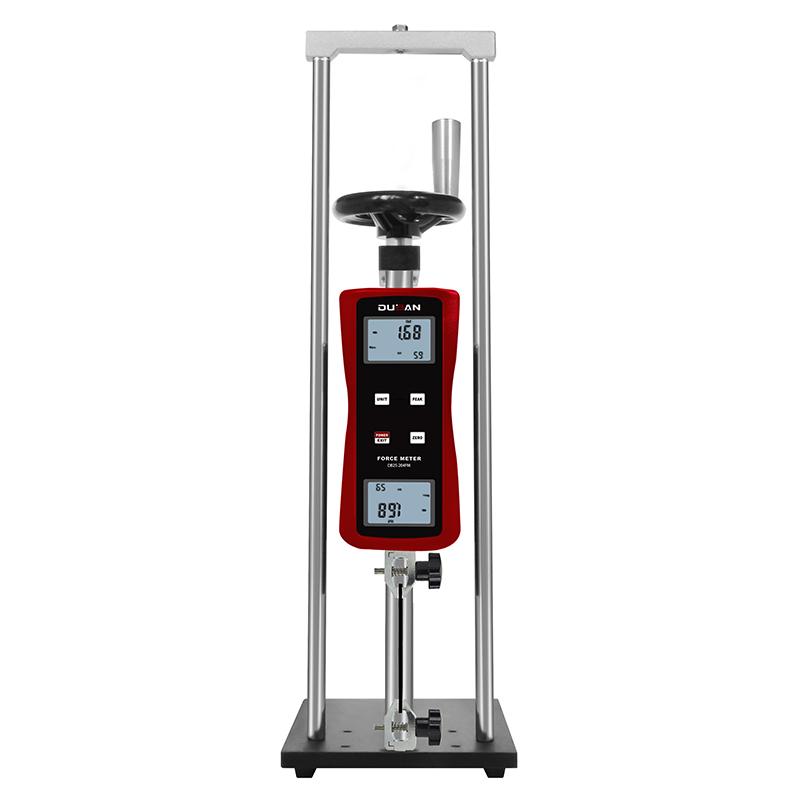

DUBAN UTTM4-DB25-204FM-2N Universal Tensile Tester small tensile Tester, range +/- 1.96N
Measurement range +/- 1.96N, 0.5 Precision, accuracy +/- 0.5% FS (range) +/- 1 digital peak, with N (Newton), kg (kg), lb (lb), g (g) four measurement units.
Brand
SKU: NB047442
DubanModel
UTTM4-DB25-204FM-2N
VS
What else did others buy
-
Haibao ZYD-2000 desktop microcomputer-controlled universal testing machine, range 2000N/200Kg
$ 3125.00 -
Hypertherm LY-5T electronic universal testing machine, measuring range 50KN/5000KG
$ 3533.00 -
Essence JH - WN-LL Universal Rally Machine, Touch Screen Version 30N
$ 1492.00 -
BaidaJUSHI LY-7012A Tensile Tester 100KG
$ 1003.00 -
Jinan HORIZON DLS-05 Electronic Tensile Tester 100N 1000mm
$ 2033.00
Genuinegoods
VS
Duban UTTM4-DB25-204FM-2N Tensile TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | ±0.2kgf、±200gf、±1.96N、±0.44Lbf |
| Force Precision | Level 0.5 |
| Force resolution | 0.001kgf、1gf、0.01N、0.001Lbf |
| Accuracy | +/- 0.5% FS (range) +/- 1 digital peak |
| unit | kgf, gf, N, Lbf |
| Measured value | Peak, instantaneous value |
| show | Four large LCD, forward and reverse dual display |
| shutdown mode | 10 minutes automatic shutdown or manual shutdown |
| Backlight | Blue Backlight |
| Allowable load | 150% F.s (buzzer alarm when it exceeds 110% F.s) |
| Power supply Voltage | 2 AA batteries or 5V DC Power Supply |
| Operating temperature | 0°C~40°C |
| Operating humidity | < 80% |
| Operating Environment | No source and corrosion medium around |
| Host size | 199mmx76mmx37 mm |
Duban UTTM4-DB25-204FM-2N Tensile Tester Packing list
Host X1, portable case X1, instruction manual X1, Force Gauge bracket X1, fixture X2
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
