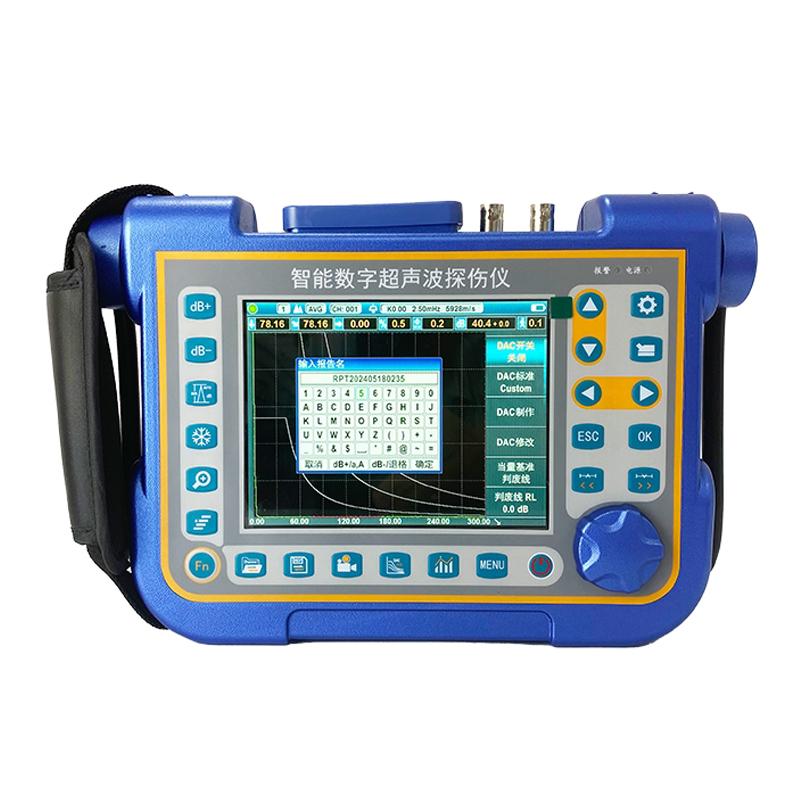

KAIRDA NDT681 digital Ultrasonic Flaw Detector PDF report 640 * 480 resolution
640 * 480 high definition resolution display waveform fine, Repeability Frequency up to 2000Hz detection efficiency, with 360 degree swirl/spin damping bracket easy to operate, support unlimited video and playback function for Data analysis.
KairDa
NDT681
-
WENTAI WT-9HS Portable eddy current Flaw Detector Metal crazing detection 64Hz-2MHz
$ 10020.00 -
MITECH CDX-ⅲ Magnetic Particle Flaw Detector Multifunctional Magnetic Particle Flaw Detector Defect Detection
$ 410.00 -
RUNJIE CDX-3 Magnetic Particle Flaw Detector Portable nondestructive testing instrument
$ 626.00 -
WENTAI FET-99S Intelligent digital eddy current Flaw Detector with installation training
$ 7066.00 -
LEEB leeb510 Ultrasonic Flaw Detector, suitable for small diameter, thin-walled tube flaw detection
$ 1750.00
Introduction
NDT681 digital ultrasonic flaw Detector is a flaw Detector that can directly generate PDF flaw detection report, color or grayscale screenshot file is directly saved to U disk, ultra-12H ultra-long standby performance lithium battery, unique Shift multi-function button design, comes with 360-degree rotating damping bracket, tempered glass panel wear-resistant and scratch-resistant, 4 kinds of operation interface UI can be selected V to automatically generate PDF flaw detection report, repeated emission frequency can reach 2000HZ, probe parameters are automatically calibrated, display resolution 640* 480 detailed waveform with unlimited recording and playback functions.
Features
Generate PDF reports directly
Inspection of thin and light workpieces
Subtle defect detection
High-definition color display
USB flash drive data storage
Unlimited recording and playback
Real-time screenshots of data
The probe is automatically calibrated
Audible and visual alarms
Application
Metal industry, steel structure, chemical equipment, aerospace, weld inspection, oil drill pipe flaw detection.
KairDa NDT681 Digital Ultrasonic Flaw DetectorSpecifications
| LIST | VALUE |
|---|---|
| detection range | 0~15 meters (steel medium shear wave) transmission 30 meters (standard model); 0~20 meters (steel medium shear wave) transmission 40 meters (high performance model) |
| Speed of sound | 100~15000m/s (standard model); 100~20000m/s (high-performance model) |
| Frequency of repeability | 20~2000Hz |
| Dynamic range | ≥36dB |
| Vertical Linearity | ≤2.5% |
| Horizontal Linearity | ≤0.2% |
| resolution | > 40dB (5P14 steel medium longitudinal wave) |
| electrical noise level | ≤10% |
| Number of flaw detection channels | 500 |
| Number of defect reports | 1000 |
| Type of flaw detection report | PDF file flaw detection report |
| Display and resolution | 5.7 IPS high luminance wide Viewing Angle display; refresh speed 60Hz; resolution 640X480 |
| digital suppression | 0~80%, does not affect linearity and gain |
| Probe type | Straight probe, oblique probe, dual crystal probe, penetration probe |
| gate | Inlet gate, loss gate; single gate reading, double gate reading |
| trigger method | Peak trigger, edge trigger |
| alarm | incoming wave, lost wave, buzzer alarm, LED light alarm |
| Power Supply | Direct current (DC) 9V; lithium battery works continuously for more than 12 hours |
| auxiliary feature | Screenshots, video and playback, B-scan, automatic DAC, AVG Linear dispersion generation, AWS intelligent acceptance rating, Data analysis software |
KairDa NDT681 Digital Ultrasonic Flaw Detector Packing list
Host X1, straight probe X1, oblique probe X1, power adapter X1, probe cable X1, U disk memory X1, coupler X1, instruction manual X1, certificate X1, warranty card X1, instrument case X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
