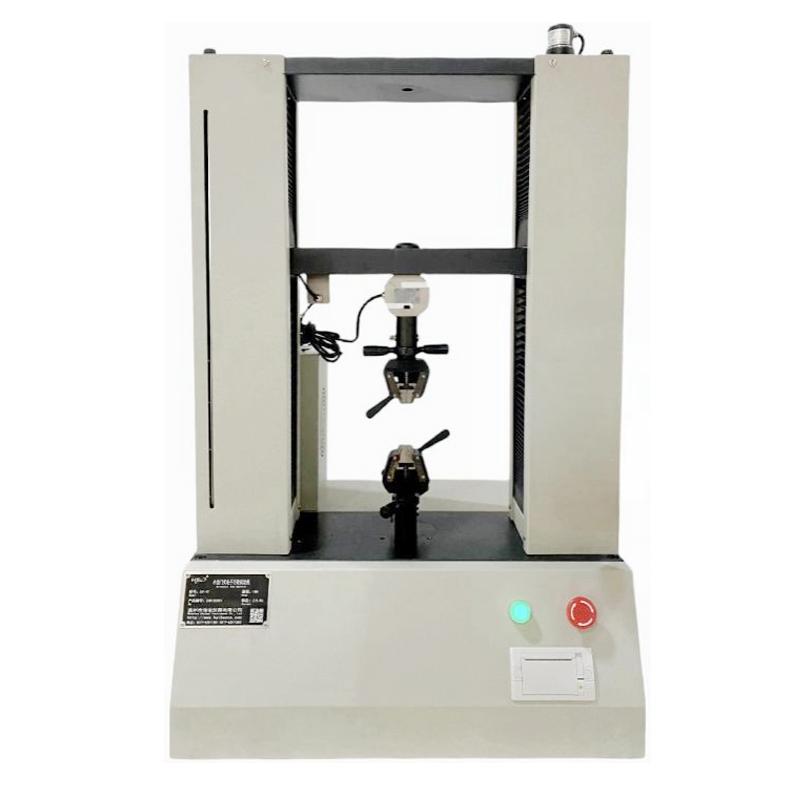

Haibao XYD-5000 small gantry microcomputer-controlled universal testing machine, range 5000N/500KG

XYD series universal testing machine is a microcomputer control model, this product uses high-strength smooth bar to fix the upper beam and the working table, so that it constitutes a high-rigidity portal frame structure, the use of stepper motor drive, the stepper motor through the transmission mechanism to drive the beam up and down, to achieve the test loading process.

It is mainly used for testing the mechanical properties of various metals, non-metals and composite materials. Sophisticated automatic control and data acquisition system realizes the full digital adjustment of data acquisition and control process. In the tensile compression test, the maximum bearing tensile pressure, tensile compressive strength, elongation compression deformation, elongation and other technical indicators of the material are detected. After the above test parameters are completed, the Windows host computer software automatically calculates them according to the test parameter conditions set at the beginning of the test, and displays the corresponding test results and test curves at the same time; After the end of the test, the test parameters can be queried and displayed, and the test results can be printed. All experiments can be done automatically on a computer with the mouse.

The equipment is used in metal, adhesive, pipe, profile, aerospace, petrochemical, waterproofing membrane, wire and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper and other manufacturing industries and product quality supervision departments at all levels, and is also used in colleges and universities for teaching and demonstration work.

Applicable Standards

The equipment conforms to [GB/T16491-1996], [GBT232-2010], [GBT6569-2006], [GB/T 12833-2006], [GBT 16491-2008], [JJG139-1999], [JJG 157-1995], [GB/T 2611-2007] and other national and industry standards.

Features

• Four-rail column and high-precision double ball screw pair structure improve measurement accuracy and stability.

• 6 force units N, kgf, lbf, gf, kN, tf.

• There are 3 displacement units: mm, cm, and in.

• The index value can be set freely: the force value can be set to 5 decimal places at most; The displacement index value can be set to up to 5 decimal places.

• The running speed can be set (speed controllable), and the starting speed, test speed, and reset speed can be set separately to improve the test efficiency and test accuracy.

• The amount of specimen deformation can be set (the displacement can be controlled).

• The loading force can be set (the force value can be controlled), and when the preset force is reached, it can be held for a delay (time controllable), automatically return to the initial position, or stop immediately

• It provides test modes such as [General Tensile Test], [General Compression Test], [General Force Retention Test], [Three/Four-point Bending Test], [Peel Performance Test], [Tear Performance Test], [Waterproofing Membrane Test] and [Electrical Casing Test]. It includes functions such as tensile and compressive strength test (strength unit: MPa) and elongation, compressibility, etc.

• The force holding type test and pressure type test (except for the [three/four-point bending test]) come with PID speed force value double loop control.

• Test software: Chinese WINDOWS interface, menu prompt, mouse operation.

• Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time, test data and curves are dynamically displayed with the test process.

• The test results are displayed in a variety of coordinate curves: force-time, force-deformation, and deformation-time.

• Automatic speed change: The test speed can be automatically changed according to a pre-set program.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
