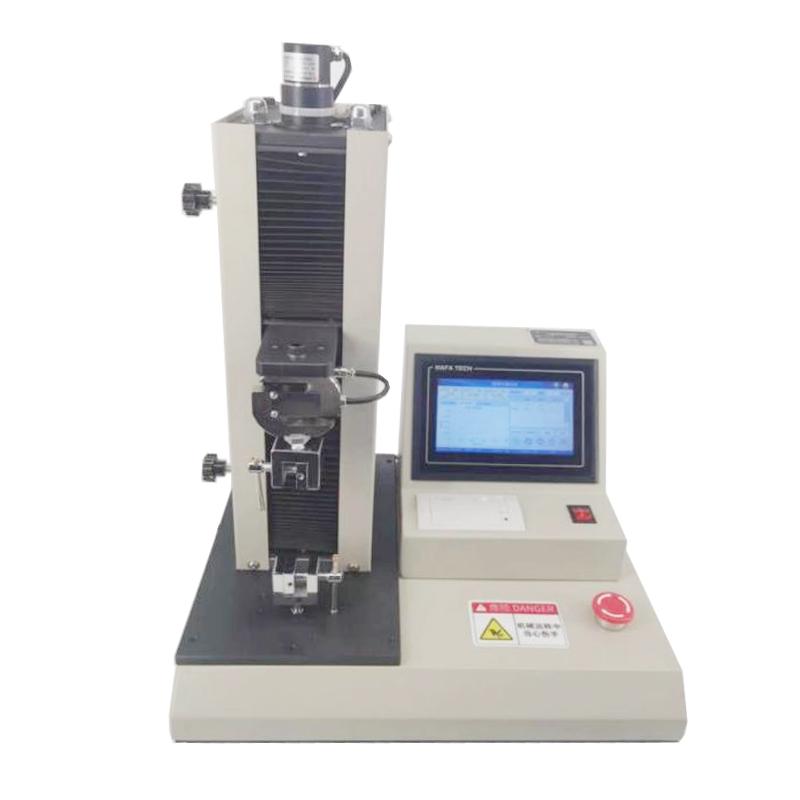

Haibao ZY-200 Desktop Electronic Universal Testing Machine, Range 200N/20Kg

ZY series electronic universal testing machine is a desktop testing machine, small size, easy to place the testing machine on the table, the operator can easily operate it on the chair.

It is mainly used for testing the mechanical properties of various metals, non-metals and composite materials. The sophisticated automatic control and data acquisition system is adopted to realize the full digital adjustment of the data acquisition and control process. In the tensile compression test, the maximum bearing tensile pressure, tensile compressive strength, elongation compression deformation, elongation and other technical indicators of the material are detected. After the above test parameters are completed, the microcomputer controller automatically calculates them according to the test parameter conditions set at the beginning of the test, and displays the corresponding test results and test curves at the same time; After the end of the test, the test parameters can be queried and displayed, and the test results can be printed.

The equipment is used in metal, adhesive, pipe, profile, aerospace, petrochemical, waterproofing membrane, wire and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper and other manufacturing industries and product quality supervision departments at all levels, and is also used in colleges and universities for teaching and demonstration work.

Applicable Standards

[GB/T16491-1996], [GBT232-2010], [GBT6569-2006], [GB/T 12833-2006], [GBT 16491-2008], [JJG139-1999], [JJG 157-1995], [GB/T 2611-2007] and other national and industry standards.

Features

• 7-inch touch screen, friendly human-computer interface, simple and easy to use, one-click to start the test.

• 6 force units N, kgf, lbf, gf, kN, tf.

• There are 3 displacement units: mm, cm, and in.

• The index value can be set freely: the force value can be set to 5 decimal places at most; The displacement index value can be set to up to 5 decimal places.

• The running speed can be set (speed controllable), and the starting speed, test speed, and reset speed can be set separately to improve the test efficiency and test accuracy.

• The amount of specimen deformation can be set (the displacement can be controlled).

• The loading force can be set (the force value can be controlled), and when the preset force is reached, it can be held for a delay (time controllable), automatically return to the initial position, or stop immediately.

• Real-time display of displacement, deformation, running speed, real-time force, peak force and test time.

• It provides test modes such as [General Tensile Test], [General Compression Test], [General Force Retention Test], [Three/Four-point Bending Test], [Peel Performance Test], [Tear Performance Test], [Waterproofing Membrane Test] and [Electrical Casing Test]. It includes functions such as tensile and compressive strength test (strength unit: MPa) and elongation, compressibility, etc.

• The force holding type test and pressure type test (except for the [three/four-point bending test]) come with PID speed force value double loop control.

• It can test 10 specimens, and automatically calculate their average, maximum, minimum and other test results.

• The test results are displayed in a variety of coordinate curves: force-time, force-deformation, and deformation-time.

• After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved.

• The machine comes with a micro printer that can print the test results.

• It comes with overload protection and limit protection, emergency shutdown device, and leakage protection device.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
