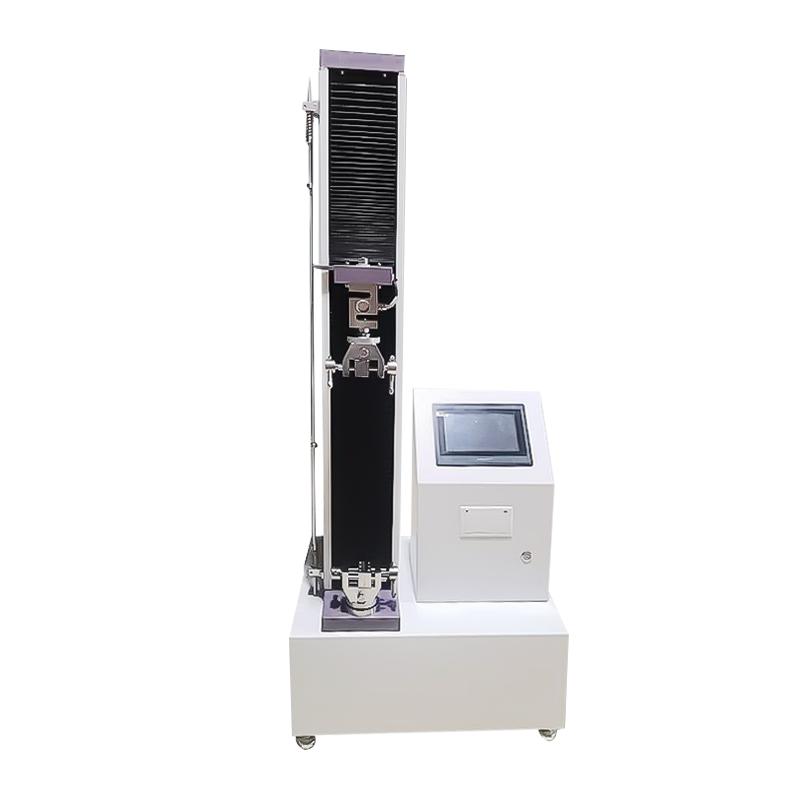

        BaiDaJuShi LY-7012C 1000KG Tensile Tester

        Patek Jushi LY-7012C Tensile Tester 1000KG

        Range 1000KG, Measurement accuracy +/- 0.01N, effective stroke 700mm, built-in micro printer, resolution 1/200000, for static load, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties test.

        Brand
        SKU: NB048610
        China BaiDaJuShi
        Stock
        Loading…
        Price
        $ 1951.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          BaiDaJuShiLOGO

          BaiDaJuShi shopSE

          Information
          Datasheet RFQ Contract Catalog
          What else did others buy
          Genuinegoods

          • BaiDaJuShi LY-7012C 1000KG Tensile TesterOverview

          • Specifications
          • Comments
          • FAQs
          LY-7012C 1000KG
          Tensile Tester
          • Patek Jushi LY-7012C Tensile Tester 1000KG
          • Patek Jushi LY-7012C Tensile Tester 1000KG Figure 1
          • Patek Jushi LY-7012C Tensile Tester 1000KG Figure 2
          Range 1000KG, Measurement accuracy +/- 0.01N, effective stroke 700mm, built-in micro printer, resolution 1/200000, for static load, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties test.

          Product use

          Tensile testing machine is also known as universal material testing machine. Universal testing machine is used for static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties testing of various materials. It is suitable for various physical and mechanical properties testing of plastic sheets, pipes, profiles, plastic films and rubber, wire and cable, steel, glass fiber and other materials. It is developed for materials, and is a special testing equipment for physical properties testing, teaching and research, quality control and other special testing equipment.


          VS

          BaiDaJuShi LY-7012C 1000KG Tensile TesterSpecifications

          LIST VALUE
          Measurement range 1000kg
          Force Precision ±0.01N
          force resolution 1/200000
          Test speed 0~500mm/min
          effective travel 700mm
          Test space 100mm
          Force Unit kgf、gf、N、kN、lbf
          stress unit MPa、kPa、kgf/cm2、lbf/in2
          shutdown mode Upper and lower limit safety setting, specimen breakpoint sensing
          result output Micro printer
          power Speed regulating motor
          optional Tension fixture (conventional)
          Machine Weight 80kg
          Power Supply 1PH、AC220V、50/60Hz

          BaiDaJuShi LY-7012C 1000KG Tensile Tester Packing list

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          I want to test the tensile strength of Plastic film, which testing machine should I choose?
          [A]
          Recommended LY-7012C single column Tensile machine, which is dedicated to film tensile testing, 1000kg force range and +/- 0.01N accuracy can accurately detect the film breaking strength, 0-500mm/min speed can simulate different stretching speeds.
          [Q]
          We need to do quality control, testing the physical performance of rubber materials, what function should we choose?
          [A]
          It has tearing, disbonding and other test functions, upper and lower safe shutdown to ensure safe operation, and the micro printer can directly output Quality control reports.
          [Q]
          Plastic film tensile strength, which Tensile machine to choose?
          [A]
          LY-7012C Single Column Tensile machine is designed for thin film soft materials, 1000kg force range and +/- 0.01N accuracy can accurately capture the film tensile curve, 0-500mm/min stepless speed regulation can simulate different stretching rates.
          [Q]
          Need to test the resilience of rubber seals, can this instrument meet?
          [A]
          Yes! This testing machine has testing functions such as disbonding and tearing. The 700mm effective stroke is suitable for large deformation testing of rubber resilience bodies. The upper and lower limit safety settings can automatically protect the sample from being overstretched.
