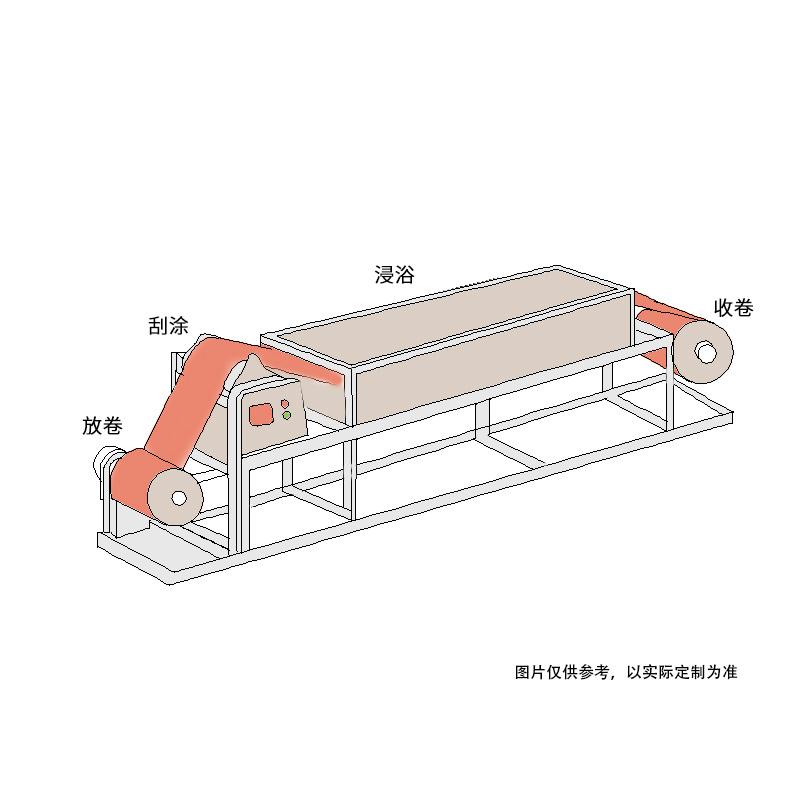

Spreader process unwinding → scraping → dipping → winding, scraping by Spreader method, Coating size ≤ 400mm, thickness range 0.001-3mm, film accuracy +/- 5%, effective width 400mm, dip coating material is corrosion resistant stainless steel.
Factory
Rgdc-00/400
-
Rxg-03/500dypro coil drawdown blade coater unwinding → corona → scraping → drying → film laminating → winding
$ 23389.00 -
Oven coil composite coater with unwinding + scraping + drying + overlaying + winding function
$ 34271.00 -
Automatic Film Applicator RDH-12/650cl film width 650mm unwinding + comma scraping + infrared drying + comma scraping + infrared Drying Oven + air-cooled + winding
$ 49817.00 -
Coil drawdown blade coater Continuous experimental Film Applicator with unwinding + scraping + drying + winding function
$ 18726.00 -
CHINA NBC-6025FB pilot production hot-melt adhesive coater film aluminum foil film equipment
Login
Introduction
RGDC-00/400 immersion coil coating machine is a continuous experimental film coating machine with unwinding, scraping, dipping and winding functions, with a coating film width of 400mm and a wet film thickness of 0.001-3mm.
Product Structure
The machine is composed of a body, a gluing width adjustment device, a discharging rack, a gluing roller group, a thickness adjustment dial gauge, a transmission platform, a traction roller group, and a transmission mechanism.
Body: The body of the equipment is composed of aluminum alloy + high electrostatic spraying plate.
Gluing width adjustment device: The width adjustment device is composed of food-grade plastic and a movable brace.
Unloading rack: The machine is equipped with two discharging racks, when the two materials are misaligned and deviated in the laminating process, the deviation correction device automatically adjusts the material rack to move left and right to achieve the effect of aligning the two materials.
Rubberized roller set: The rubberized roller set is made of double-drum precision machined parts, and the transmission is stable.
Thickness adjustment dial gauge: The adjustment of the coating thickness required when applying glue. The thickness of the gluing can be adjusted by rotating the left and right handwheels on the gluing roller frame clockwise or counterclockwise, and the specific thickness is determined according to the dial gauge indication.
Transmission platform: The transmission platform is made of stainless steel, and its main function is to connect the substrate after gluing to the next process.
Traction roller group: the substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group pulls the substrate over through power transmission to complete the coating work.
Features
Substrate tension control, stable belt handling
The main drive is servo driven, and the speed can be set
PLC control, HMI operation, convenient and easy to use
Process Introduction
The equipment adjusts the unwinding tension by controlling the unwinding shaft torque, adjusts the winding tension by controlling the winding shaft torque, and realizes the belt transport control with the rotation linear speed of the main drive steel roller as the main driving speed.
Factory Rgdc-00/400 Soaking coil coaterSpecifications
| LIST | VALUE |
|---|---|
| Spreader process | Unroll → Scratch → Soak → Roll |
| Coating method | scraping |
| Coating size | ≤400mm |
| Width of guide roller | 400mm |
| Thickness range | 0.001-3mm |
| Film Accuracy | ±5% |
| Graduation | 0.001mm |
| percentile | digital display |
| Spreader thickness control | manual |
| Coating speed | 0~20M/min adjustable |
| winding diameter | 3-Inch expansion shaft, load-bearing 50KG |
| tension control | Max.60N |
| unwinding diameter | Max. Ф400mm |
| winding diameter | Max. Ф400mm |
| Tension Control mode | automatic |
| Control mode | automatic |
| Correction Accuracy | ±1mm |
| Dip coating type | Solution soaking (Note: After the substrate is crystallized in solution, it can be rolled around the tape) |
| Dip coating material | Resistant corrosion stainless steel (note, the solution cannot react chemically with the material) |
| Number of baths | 1 |
| Applicable coil type | Plastic film, paper, non-woven fabric, etc |
| Spreader type | Water-based paints, solar-based paints, UV coatings, etc |
| Dimension | 4000Mm * 600mm * 1600mm (subject to actual customization) |
| Weight | 0.5T (subject to actual customization) |
| Power Supply | Single Phase AC220V +/- 10%, Frequency 50Hz, Power 9.5KW |
| gas source | 0.5~ 0.8MPa compressed air |
Factory Rgdc-00/400 Soaking coil coater Packing list
Film Applicator x1, film device x1, unwinding device x1, deviation correction device x1, immersion tank x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
