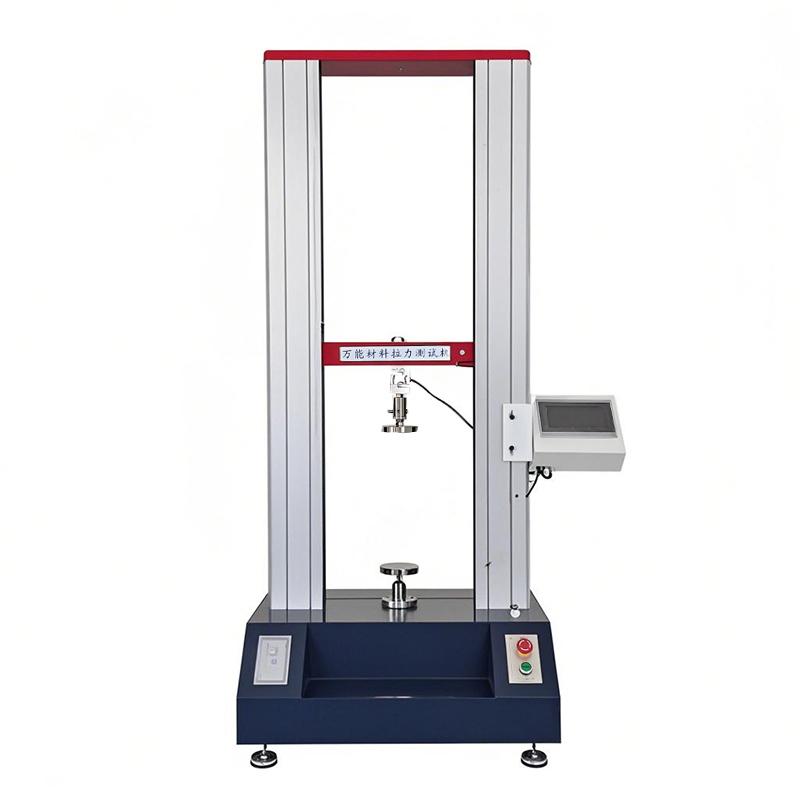

Lugong STX20K Digital Display Double Arm Tensile Tester Double column tensile machine 20KN
Maximum test force 20KN, Measurement range 1% - 100% FS (full scale), test force accuracy +/- 1%, displacement measurement resolution 0.01mm, beam traverse speed 0.1-500 mm/min, effective test width size 400mm
LUGONG
STX20K
-
Hypertherm LY-1T electronic universal testing machine, range 10KN/1000KG
$ 2849.00 -
Haibao XYD-1T small gantry microcomputer-controlled universal testing machine, range 10KN/1000KG
$ 3404.00 -
Essence JH - WN-LL Universal Rally Machine, Touch Screen Version 300N
$ 1492.00 -
HBO ZT-200 Small Electric Spring Testing Machine, Range 200N
$ 2019.00 -
HBO ZTD-50 Desktop Microcomputer Controlled Spring Tension and Compression Tester, Range 50N
$ 3219.00
Introduction
The design of the main machine and auxiliary tools of the digital display double-arm micro-controlled electronic universal testing machine integrates the company's advanced technology, with beautiful appearance, convenient operation, stable and reliable performance. The system controls the rotation of the servo motor through the controller and the speed control system, and rises and falls through the precision screw sub-belt beam after deceleration by the deceleration system to complete the tensile mechanical properties test of the sample, with no pollution, low noise, high efficiency and a wide speed regulation range. The machine is widely used in the material inspection and analysis of metal, non-metal, building materials, aerospace, machinery manufacturing, wire and cable industries, and is a reliable testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.
Main functions and features
1. The speed regulation system adopts servo motor and synchronous belt deceleration mechanism, which has stable and reliable performance, and has protection devices such as overcurrent, overVoltage and overload.
2. The transmission part adopts arc synchronous toothed belt, precision ball screw auxiliary transmission, stable transmission, low noise and high transmission efficiency.
3. The touch screen operation mode and real-time display of the LCD monitor overcome the problem that the old-fashioned digital tube display is prone to failure, and it is beautiful, generous, convenient and fast.
LUGONG STX20K Tensile TesterSpecifications
| LIST | VALUE |
|---|---|
| maximum test force | 20KN |
| Measurement range | 1% - 100% FS (full scale) |
| Force Precision | ±1% |
| Displacement measurement resolution | 0.01mm |
| Beam traverse speed | 0.1-500mm/min |
| effective stretch stroke | 750Mm (can be customized according to user request) |
| effective compression stroke | 970Mm (can be customized according to user request) |
| effective test width | 400mm |
| Operating Environment | Room temperature is about 35 ° C, Relative Humidity does not exceed 80% |
| Operating interface | Operating interface is LCD display, menu is Chinese/English |
| Dimension | 750 * 540 * 1750Mm (can be customized size) |
| Dimension | 750 * 540 * 2150Mm (plus work cabinet) |
| Weight | 200 kg |
| Power supply for the whole machine | Single Phase, 220V +/- 10%, 50Hz |
LUGONG STX20K Tensile Tester Packing list
Host X1, Power Cord X1, Manual X1, Fixture X1, Force Value Sensors X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
