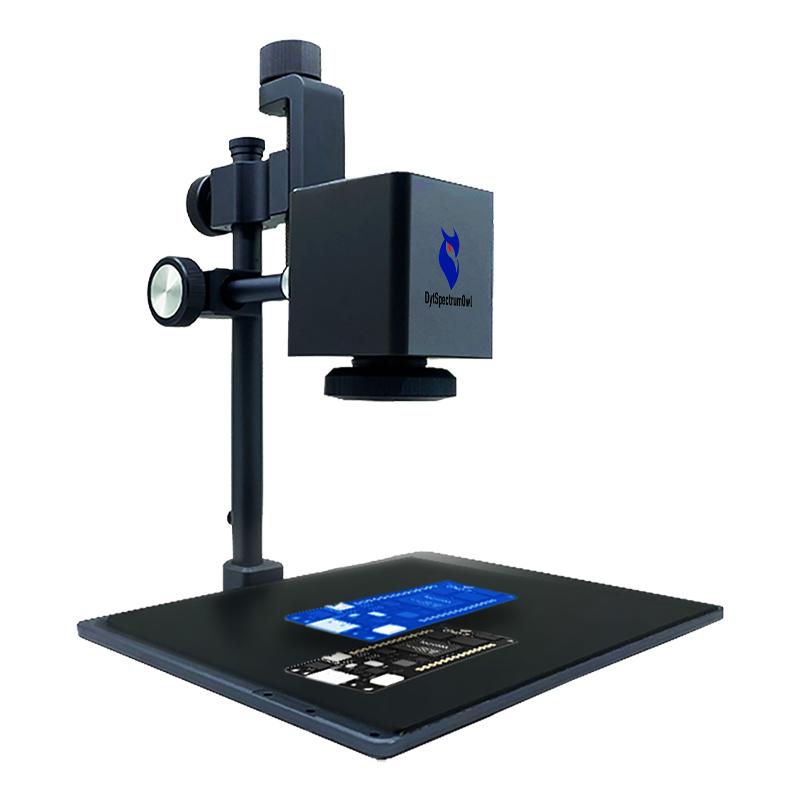

DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection

Product Introduction

The CA-20D entry-level thermal analyzer can analyze thermal faults, heat conduction, and heat distribution of circuit boards and materials. CA-20D is equipped with a Detector resolution of 256*192, which can not only detect temperature changes of electronic components and heat dissipation materials, but also record a variety of test data with relatively rich software functions.

Product characteristics:

• The focal length is adjustable, and the minimum observation distance can reach 20mm; The maximum distance is recommended to be within 1m.

• Connect the computer software through a USB cable for analysis and data analysis.

• It supports double-board splicing to expand the substrate area and observe objects with a larger area.

• The multi-axis bracket can observe objects from different angles, making the observation more comprehensive.

• The temperature sensor can display ambient temperature and thermal imaging temperature at the same time, and perform multi-dimensional analysis in combination with ambient temperature and thermal imaging temperature.

machine x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
