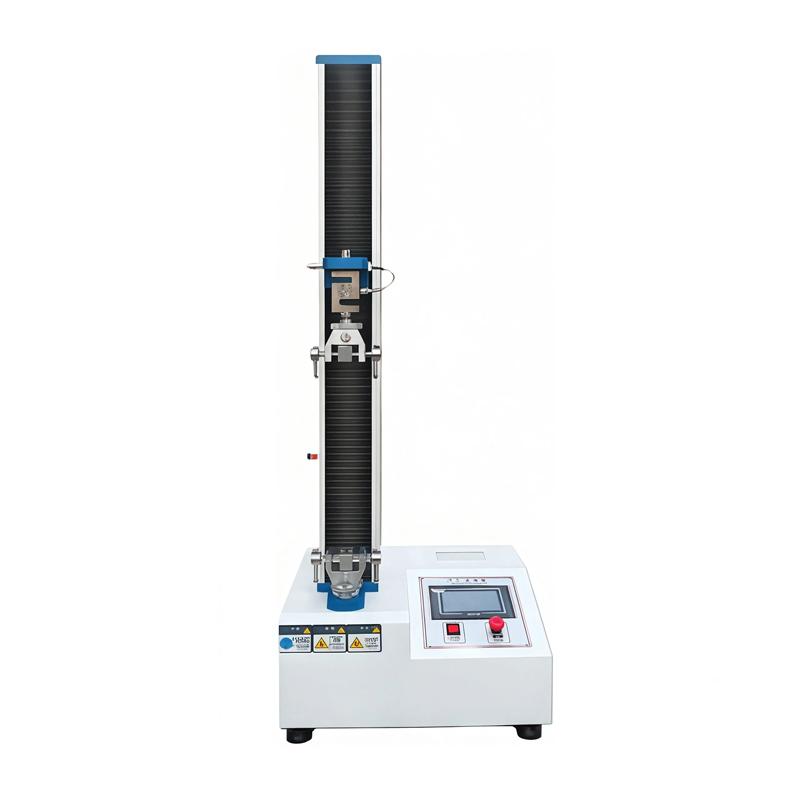

Factory direct sales NBC-500KG Tensile machine Material mechanical performance Tester 500KG capacity +/- 1% accuracy
Using 500KG test capacity and +/- 1% Measurement accuracy, support stepless speed regulation of 1-300mm/min, with automatic shutdown function of specimen breakpoint, can accurately detect a variety of mechanical indicators.
Factory
NBC-500KG
-
Haibao XY-5000 electronic universal testing machine, range 5000N/500KG
$ 2222.00 -
Taichang TC-DLJ01 Tensile Tester stroke 600mm Chinese Sensors
$ 1136.00 -
YANTE YT-L500 Vertical computerized tensile Tester, tensile index elongation tensile strength peel strength
$ 3118.00 -
CHINA NBC-1021-2 Touch screen single column Tensile Strength Tester 500KG
$ 1641.00 -
Haibao LYD-3T gantry microcomputer-controlled universal testing machine, measuring range 30KN/3000KG
$ 4142.00
Product Use:
It is suitable for the performance testing of tensile strength, peel strength, deformation rate, tensile force, peel force, opening force and other properties of plastic film, composite film, adhesive, adhesive tape, patch, protective film, release paper, rubber, artificial leather, paper fiber and other products.
Applications:
Tapes, automobiles, ceramics, composite materials, construction, food equipment, metals, paper, packaging, rubber, textiles, wood, communications and various special-shaped materials.
Factory NBC-500KG Tensile machineSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 500KG |
| Measurement Accuracy | ±1 % |
| resolution | 1/200000 |
| Test speed | 1～300 mm/min |
| effective travel | 600 mm |
| Test space | 120 mm |
| Force Unit | kgf、gf、N、kN、lbf |
| stress unit | MPa、kPa、kgf/cm2、lbf/in2 |
| shutdown mode | Upper and lower limit safety setting, specimen breakpoint sensing |
| result output | Micro printer |
| power | Speed regulating motor |
| optional | Tension fixture (conventional) |
| Machine Weight | Approx. 70 kg |
| power supply | 1PH、AC220V、50/60Hz |
Factory NBC-500KG Tensile machine Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
