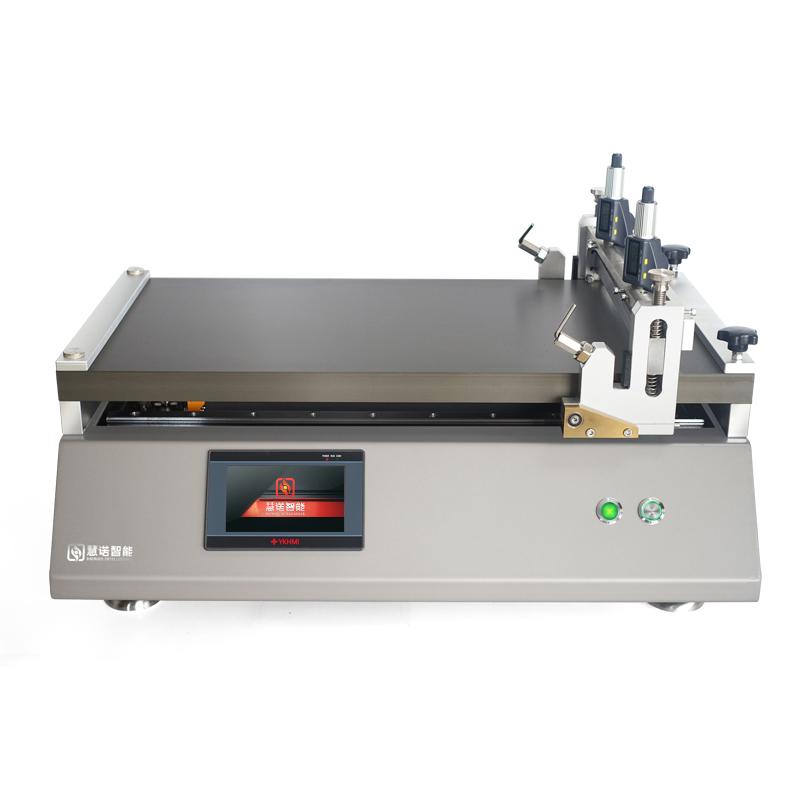

HuiNuo TM3000Pro/29 Automatic Film Applicator bar drawdown blade coater High Accuracy Laboratory Moulding Equipment
With bar and drawdown blade double Spreader function, coating speed 1-300mm/s stepless speed regulation, clamshell drawdown blade design for easy cleaning, film thickness control accuracy of +/- 0.001mm, support 600 × 400mm effective coating area.
HuiNuo
TM3000pro/29
-
CHINA metering rod & drawdown blade Laboratory Film Applicator TBJ-X2-DJ14 Coating size 750 * 1100mm
$ 12507.00 -
China TBJ-X5-DJ3 Vacuum chuck Drawdown blade Film Applicator Draw-Down Applicator Servo motor, format 300 * 600mm customized model
$ 5667.00 -
China TBJ-B2-DJ6 Floor drawdown Bar & blade coater Coating size 600 * 800mm
$ 7533.00 -
TM2200pro High-precision experimental coater with Drawdown Blade and Vacuum bed
$ 3957.00 -
HUINUO TM3300/03 metering rod & drawdown blade heating vacuum adsorption Film Applicator Standard 3 wire rods
$ 5045.00
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Product features:
1) High flatness hard aluminum alloy bottom plate, scratch and scratch resistance
2) Big brand differential adjuster, high film thickness control accuracy
3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
HuiNuo TM3000pro/29 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| coating method | Bar + drawdown blade |
| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | fixture |
| Coating table material | Carbide aluminum alloy baseplate (optional Glass plate) |
| Coating table size | 840*430mm |
| effective coating area | 600 * 400Mm (can be customized) |
| meyer rod coating thickness range | Film thickness is different, with High Accuracy bar |
| Bar accuracy | ±0.001mm |
| Blade Coating Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 400mm |
| Blade Coating accuracy | ±0.003mm |
| Drive motor | Servo motor |
| power | 400w |
| operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 100V~220V/50~60HZ |
| dimensions | 860 * 540 * 430Mm (subject to the actual product) |
| optional feature | Heating, Vacuum chuck |
HuiNuo TM3000pro/29 Automatic Film Applicator Packing list
Automatic Film Applicator x1, bar x1, drawdown blade x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
