PUSHEN DCJ-II DuPont Impact Tester 1 meter, coating fastness tester
Impact specimens are assessed for damage by a specified weight of steel balls falling freely from an adjustable height. Core parameters include 50-1000mm adjustable drop height, 300/500/1000g weight, and a variety of die base radii for a variety of material testing.
Pushen
DCJ-II
Product Introduction
DCJ-II DuPont impactor (PS 2699 series) is suitable for plastics, ceramics, acrylic, glass fiber and other materials and test coatingsDegree of imprisonment. The principle is to use a steel ball of a specified weight, adjust it at a certain height, make it fall freely, hit the specimen, and observe its resistanceDegree of damage.
Meet the standards
Taiwan Standard CNS 10756 "General Inspection Method for Coatings"
Japanese Industrial Specification JIS-K5400 "General Test Method for Coatings"
American Materials Standard ASTM-D2794 "Standard Test Method for Resistance to Rapid Deformation (Impact) of Organic Coatings"

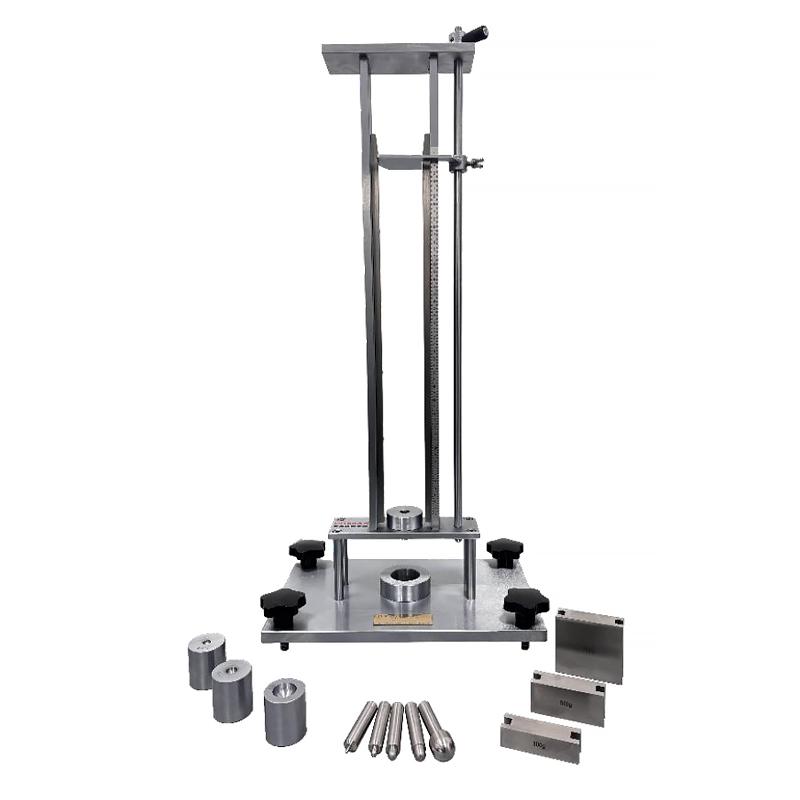

Pushen DCJ-II DuPont Impact Device (1m)Specifications
| LIST | VALUE |
|---|---|
| Hammer drop height | 50~ 1000mm (one grade per 50mm, adjustable freely) |
| Heavy weight | 300 grams, 500 grams, 1000 grams each |
| Punch radius | 1/2 ", 1/4", 1/8 ", 1/16", 3/16 "There are five kinds in total |
| die base radius | 1/2 ", 1/4", 1/8 ", 1/16", 3/16 "There are five kinds in total |
| Instrument information | 380*240*1340mm（34 KG） |
| Shipment information | 450*270*1400mm（49 KG） |
Pushen DCJ-II DuPont Impact Device (1m) Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
