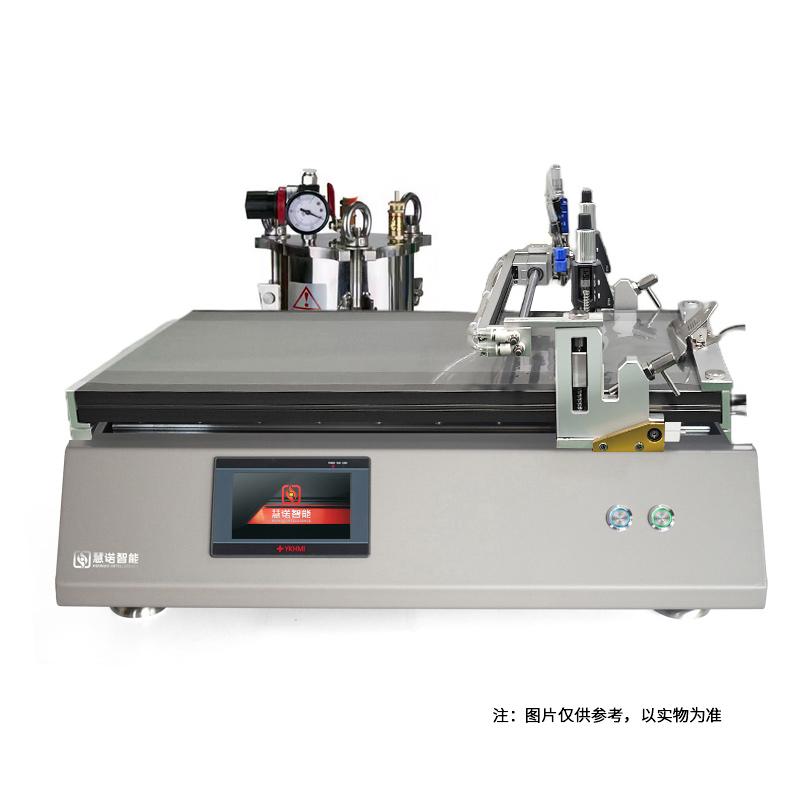

HuiNuo TM3000AF/01 Automatic Film Applicator flip drawdown blade + automatic feeding system effective coating area 500 * 200mm

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This film coating machine is a wire rod type automatic coating machine, the new line rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

Features:

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.

2) Big brand differential adjuster, high film thickness control accuracy

3) With heating and vacuum adsorption function (customized)

4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

Host X1, manual X1, certificate X1, warranty card X1, bar X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
