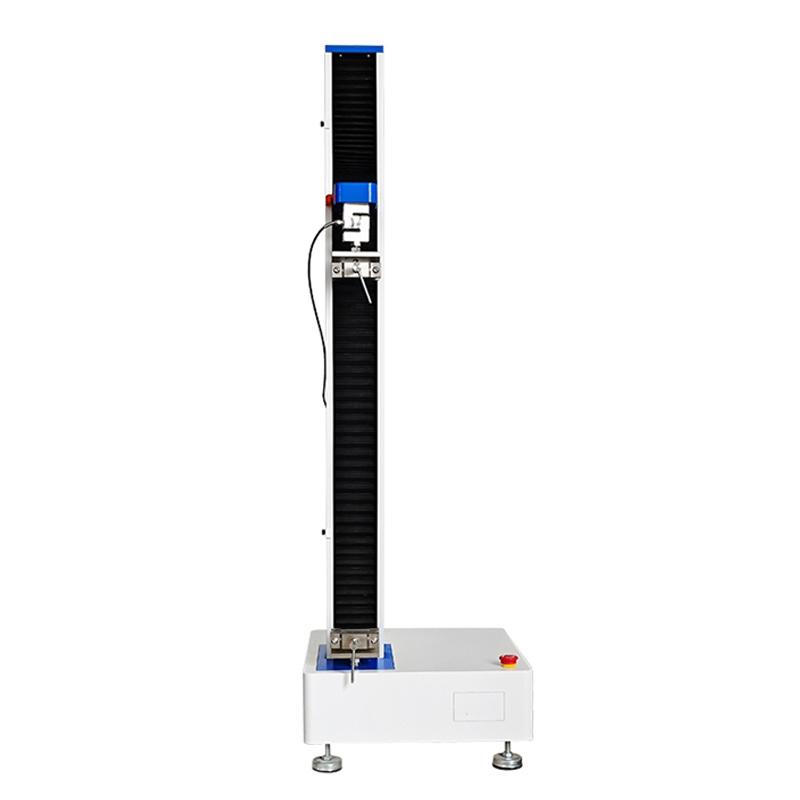

Lugong STD10H Single Arm Universal Testing Machine Height 10N Maximum test force 0.5 level accuracy

Equipment Usage:

It is suitable for measuring the mechanical properties and related physical parameters of various materials in the states of tensile, compression, bending, shear, tearing, peeling, puncture, etc. It can do tensile, compression, three-point bending, four-point bending, shearing, tearing, peeling, puncture of finished shoes, carton pressure, foam cyclic compression, spring tension and various dynamic and static cycle tests. And it can conduct tests and provide data according to relevant domestic and international standards such as GB, ISO, DIN, ASTM, JIS, etc.

Performance characteristics

mechanical process structure

The main frame is mainly composed of a base, column and precision ball screw to form a floor-standing structure; The transmission loading system adopts servo motor, planetary reducer and synchronous toothed belt reduction device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. This machine has beautiful shape, good stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.

Control and measurement systems

The standard style of Windows, hierarchical operation and detailed help documentation and tips make it the most user-friendly software in the testing machine industry today, and your commissioning and software training efficiency will be significantly improved.

1. User permission hierarchical management mode: The permission management system enables you to lock any functional module of the software, divide the software operation into multiple permission levels, and the unauthorized operator cannot touch the unauthorized module, making the software operation safer and more reliable.

2. Have a powerful test management function: the corresponding test plan can be edited according to different standards, as long as the corresponding test scheme is selected during the test, the test can be completed according to the standard requirements, and the test report that meets the standard requirements can be output. The test process and equipment status are displayed in real time.

3. Powerful data and curve analysis functions

4. Convenience of report editing: The industry's innovative Microsoft Word report format is simple and easy to use, as long as you can use Word, you can edit the beautiful report you want. Standardized report output templates, fully open test result editing methods, users can get any test results they want.

5. The test unit can be set arbitrarily according to the needs: the powerful unit system can adapt to any unit system in the world, such as gf, kgf, N, kN, tf, lbf, ozf, tf(SI), tf(long), tf(short), etc. for selection, and can be expanded to any variety of units.

6. Multiple protection mechanisms: force, stroke, displacement over-range protection setting, upper and lower limit stroke switch hardware protection setting.

7. Test data reminder storage to avoid accidental loss of test data.

8. One-click switching of multiple languages: Chinese Simplified, Traditional Chinese, English, and Japanese, Korean, Russian, German, French, Spanish, Portuguese, etc. will be launched soon.

9. USB or serial port communication, stable and reliable data transmission, strong anti-interference ability; Green software, no installation required, can be directly copied to the computer for use (serial port driver needs to be installed first), maintenance and upgrade are simpler.

Host X1, Power Cord X1, Manual X1, Fixture X1, Hand Control Box X1, Software Installation Card X1, Force Value Sensor X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
