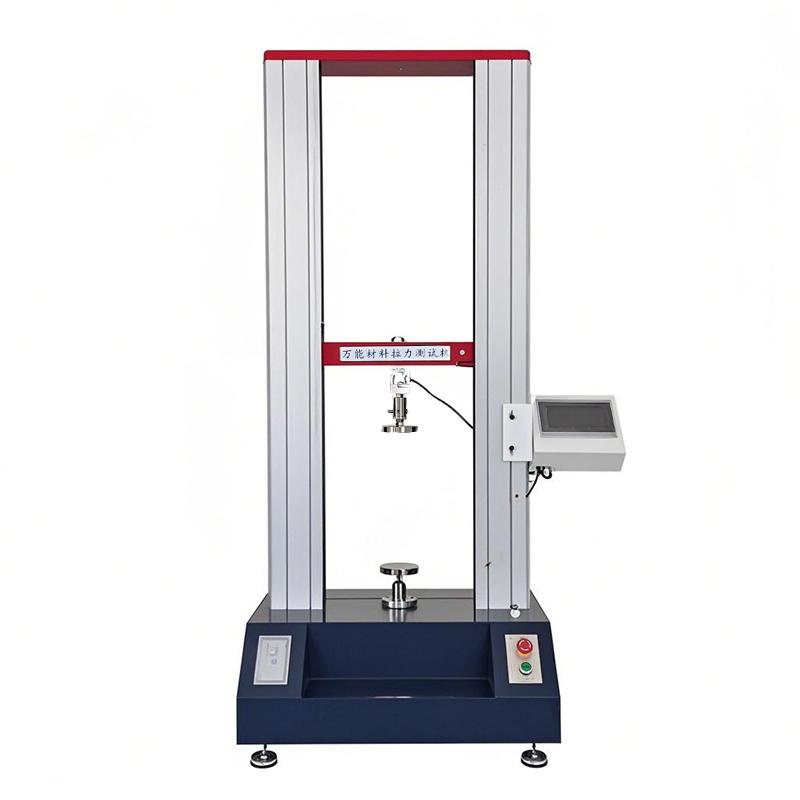

Lugong STX1K Digital Display Double Arm Universal Testing Machine Maximum Test Force is 1kN Microcontrol Electronic Universal Material Testing
Using servo motor and timing belt deceleration mechanism, the transmission is smooth and efficient. Test force accuracy of +/- 1%, displacement resolution 0.01mm, equipped with Touchscreen LCD display, intuitive and reliable operation.
LUGONG
STX1K
-
Jinan HORIZON DLS-05 Electronic Tensile Tester 50N 1000mm
$ 2064.00 -
HBO ZTD-1K Desktop Microcomputer Controlled Spring Testing Machine, Range 1000N
$ 3588.00 -
CHINA NBC-1021 (2KG) material tensile machine, tensile compression testing machine
$ 1835.00 -
HBO HDD-10K Electric Double Column Tensile Tester
$ 1256.00 -
Haibao LYD-5000 gantry microcomputer-controlled universal testing machine, range 5000N/500KG
$ 3550.00
Product Introduction
The design of the main machine and auxiliary devices of the digital display double-arm micro-controlled electronic universal testing machine integrates our company's advanced technology, with beautiful appearance, easy operation, stable and reliable performance. The system is controlled by the speed control system to rotate the servo motor, and after the deceleration system slows down, it rises and falls through the precision lead screw sub-belt beam to complete the tensile mechanical property test of the specimen, which is pollution-free, low noise, high efficiency, and has a wide speed regulation range. The machine is widely used in metal, non-metal, building materials, aerospace, machinery manufacturing, wire and cable and other industries for material inspection and analysis, and is a reliable testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Main functions and features
1. The speed regulation system adopts servo motor and synchronous belt reduction mechanism, which has stable and reliable performance, and has protection devices such as overcurrent, overvoltage, and overload.
2. The transmission part adopts arc synchronous toothed belt, precision ball screw sub-transmission, stable transmission, low noise, high transmission efficiency.
3. The touch screen operation mode and LCD display display in real time overcomes the problem that the old-fashioned digital tube display is prone to failure, and is beautiful, generous, convenient and fast.
LUGONG STX1K Digital Double Arm Universal Testing MachineSpecifications
| LIST | VALUE |
|---|---|
| maximum test force | 1kN |
| measurement range | 1% - 100% FS (full scale) |
| Test force accuracy | ±1% |
| Displacement measurement resolution | 0.01mm |
| Beam traverse speed | 0.1-500mm/min |
| Effective Stretching Travel | 750Mm (can be customized according to user request) |
| Effective Compression Travel | 970Mm (can be customized according to user request) |
| Effective test width dimension | 400mm |
| Working environment | Room temperature is about 35 ° C, relative humidity does not exceed 80% |
| operation interface | The operation interface is LCD screen display, and the menu is Chinese/English |
| Host dimensions | 750 * 540 * 1750Mm (can be customized size) |
| Host dimensions | 750 * 540 * 2150Mm (plus work cabinet) |
| weight | 200 kg |
| Power supply for the whole machine | Single Phase, 220V +/- 10%, 50Hz |
LUGONG STX1K Digital Double Arm Universal Testing Machine Packing list
Host X1, Power Cord X1, Manual X1, Fixture X1, Force Value Sensor X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
