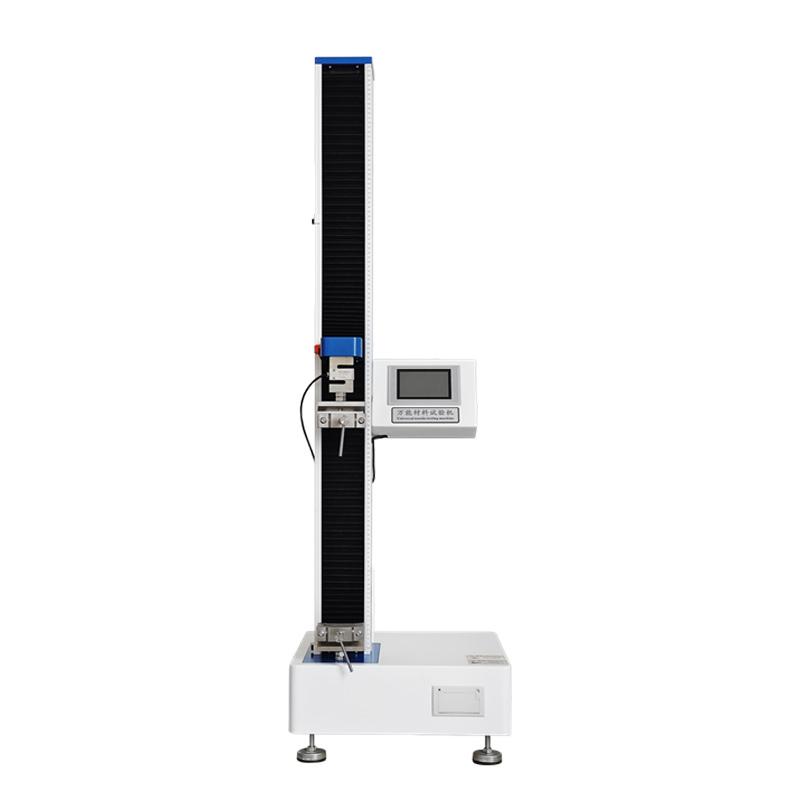

Lugong STX10 Digital Display Single Arm Universal Testing Machine Maximum Testing Force 10N Microcomputer Controlled Electronic Universal Testing Machine
The maximum test force is 10N, and the test speed is 0.1-500 mm/min stepless speed regulation. High Accuracy stepper motor and ball screw drive are used to ensure accurate and stable control. The special design of the fixture is firmly clamped, and it is equipped with a large-screen LCD display and multiple safety protections.
LUGONG
STX10
-
CHINA NBC-1021 Touch screen single column Tensile Strength Tester 100KG
$ 1148.00 -
Jinan HORIZON DLS-05 Electronic Tensile Tester 30N 1000m
$ 2064.00 -
Haibao DXL-3000 Wire Harness Terminal Tensile Tester Range 3000N
$ 1357.00 -
CHINA NBC-1024 Servo Control Computer System Tensile Testing Machine
$ 3977.00 -
Haibao DXL-2000 Wire Harness Terminal Tensile Tester Range 2000N
$ 1207.00
Product Introduction
The digital display single-arm micro-controlled electronic universal testing machine is a new generation of microcomputer-controlled electronic universal testing machine specially designed for colleges and universities and scientific research institutes. The design of the main engine and auxiliary devices draws on international advanced technology, with beautiful appearance, easy operation, stable and reliable performance. The high-precision stepper motor and drive are used to drive the precision ball drive screw and guide rod for loading after deceleration, and complete the tensile, compression, bending, shear and other mechanical property tests of the specimen, with a wide and accurate loading speed and force measurement range, and have high accuracy and sensitivity for the measurement and control of load, deformation and displacement. It is suitable for stretching, peeling and tearing performance tests of plastic films, composite films, flexible packaging materials, adhesives, adhesive tapes, self-adhesives, rubber, paper and other products, and is a reliable testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Host
The main engine adopts a high-stiffness single-arm structure, which has a beautiful appearance;
It adopts high-precision ball screw, and the transmission is efficient and stable
The transmission part adopts arc tooth synchronous belt transmission, and there is no gap in both directions during the transmission process
It adopts high-precision stepper motor and drive system to ensure smooth transmission and precise control
The clamp is specially designed to hold firmly, easy to operate, and has no jaw slippage
The special process ensures the coaxiality of the testing machine, which eliminates the influence of irregular specimens on the sensor
Control system
Including load measurement, displacement measurement and deformation measurement systems
The large LCD screen displays control parameters and measurement results in real time
It has functions such as overload protection
LUGONG STX10 Digital Single Arm Universal Testing MachineSpecifications
| LIST | VALUE |
|---|---|
| maximum test force | 10N |
| Force value accuracy | Level 1 |
| Force measurement range | 2%--100%FS |
| Force value indication accuracy | Better than indication +/- 1% |
| Force resolution | 1/3000 |
| Beam displacement measurement accuracy | Resolution higher than 0.01mm |
| Test speed range | 0.1 - 500mm/min, stepless speed regulation |
| Safety protection device | Mechanical limit protection and software overload protection |
| test space | 650Mm (can be customized according to user request) |
| Working environment | Room temperature - 35 ℃, relative humidity does not exceed 80% |
| dimensions | 470×470×1210mm |
| weight | Approx. 90 kg |
| Power supply for the whole machine | Single phase, 220V +/- 10%, 50Hz; 400W |
LUGONG STX10 Digital Single Arm Universal Testing Machine Packing list
Host X1, Power Cord X1, Manual X1, Fixture X1, Force Value Sensor X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
