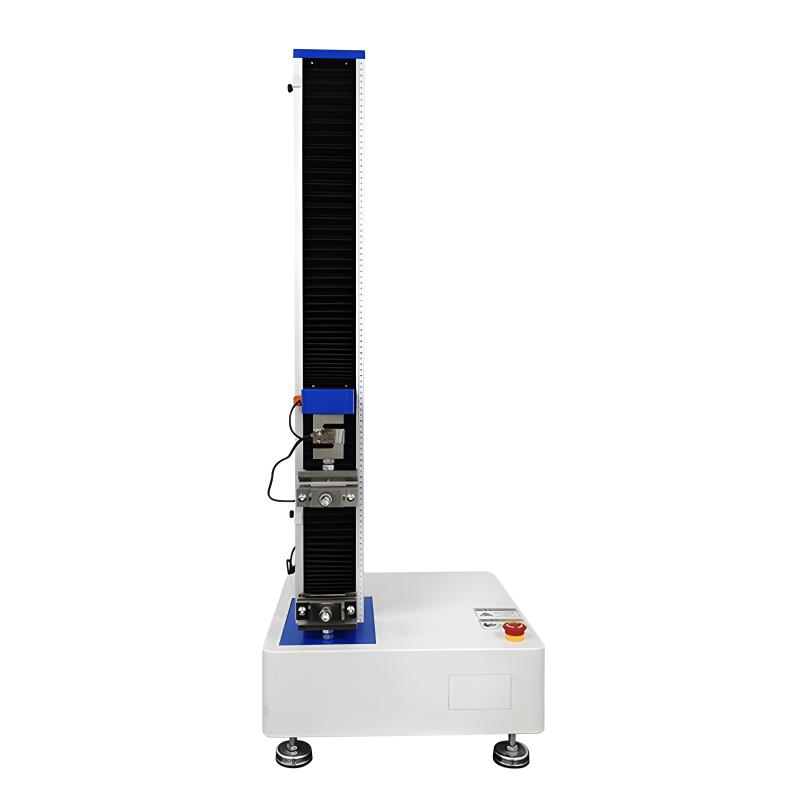

Lugong STD1000 Single Arm Universal Testing Machine Maximum test force 1000N mechanical properties tester 0.5 level accuracy

Product Introduction

It is suitable for measuring the mechanical properties and related physical parameters of various materials in the states of tensile, compression, bending, shear, tearing, peeling, puncture, etc. It can do tensile, compression, three-point bending, four-point bending, shearing, tearing, peeling, puncture of finished shoes, carton pressure, foam cyclic compression, spring tension and various dynamic and static cycle tests. And it can conduct tests and provide data according to relevant domestic and international standards such as GB, ISO, DIN, ASTM, JIS, etc.

mechanical process structure

The main frame is mainly composed of a base, two columns and two precision ball screws to form a gate-type floor-to-ceiling frame structure; The transmission loading system adopts servo motor and synchronous toothed belt reduction device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. This machine has beautiful shape, good stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.

Control and measurement systems

1. Hierarchical management mode of user permissions

The permission management system allows you to lock any functional module of the software, divide the software operation into multiple permission levels, and the unauthorized operator cannot touch the unauthorized module, making the software operation safer and more reliable.

2. It has a powerful test management function

The corresponding test scheme can be edited according to different standards, and the test can be completed according to the standard requirements as long as the corresponding test scheme is selected during the test, and the test report that meets the standard requirements can be output. The test process and equipment status are displayed in real time, such as: equipment operation status, program control operation steps, etc. Standardized test process control allows users to define any number of test standards for user calling, covering GB, ASTM, DIN, JIS, BS... and almost all test standards. Flexible and powerful test method customization mode, with fixed speed, positioning shift, constant force, constant force rate, constant stress, constant stress rate, fixed strain, fixed strain rate, etc., can realize complex multi-step nested cycle control. Functions such as automatic return, automatic breakage judgment, and automatic zeroing can be set.

3. Powerful data and curve analysis functions

Multi-threaded parallel processing technology is used to display various curves such as force-displacement, force-time, displacement-time, stress-strain and other curves in real time during the test, and supports switching at any time. Users can freely select curve types such as load-deformation and load-time, and view single or combined curves in real time. The curves of the same group of specimens can be superimposed and compared in multiple colors, and support curve traversal, local magnification, and feature point marking and labeling. Automatically or manually take points on the curve for analysis, and the annotated curve can be exported to the test report.

The data analysis function is powerful, providing operation tools such as graphical zoom, translation, crosshair, and point acquisition. It supports multiple historical data to be tuned in for comparative analysis at the same time, and has 7 interval settings, 40 manual points and 120 automatic points acquisition capabilities. The statistical function covers many indicators such as maximum, minimum, average, de-high-low average, median, standard deviation, overall standard deviation, CPK value, etc.

4. Convenience of report editing

Adopting the industry's innovative Microsoft Word report format, it is easy to operate, and users only need to master the basic operation of Word to easily design and generate beautiful reports. Support customers to customize various report templates and automatically output test reports based on the templates. The system provides both Word and Excel report template options.

The report output template is standardized, and the test result editing method is completely open, ensuring that users have the freedom to obtain any test results they need. The system automatically calculates more than 400 calculation results, including maximum force, breaking force, peel force, tensile strength, shear strength, tear strength, maximum deformation, yield force, elongation, elastic modulus, ring stiffness, non-proportional elongation, interval minimum force, interval average force, constant elongation force, constant force elongation, etc., which can be flexibly selected by users according to their needs.

5. The test unit can be set arbitrarily according to the needs.

The powerful unit system can adapt to any unit system in the world, such as gf, kgf, N, kN, tf, lbf, ozf, tf(SI), tf(long), tf(short), etc., and can be expanded to any variety of units.

6. Multiple protection mechanisms:Force, stroke, displacement over-range protection setting, upper and lower limit stroke switch hardware protection setting.

7. Test data reminder storage to avoid accidental loss of test data.

Test data management is simple, intuitive and efficient: A single test data is stored in the form of a Windows standard document, and the storage path and file name can be freely set. It avoids the shortcomings of traditional measurement and control software storing test data in database format, which will cause the database file to become larger and slower. As long as your hard drive is large enough, you can save an unlimited amount of test data.

8. One-click switching of multiple languages:Chinese Simplified, Traditional Chinese, English, and 10 languages will be available in Japanese, Korean, Russian, German, French, Spanish, Portuguese, etc.

9. USB or serial port communication, stable and reliable data transmission, strong anti-interference ability;Green software, no installation required, can be directly copied to the computer for use (serial port driver needs to be installed first), maintenance and upgrade are simpler.

Host X1, Power Cord X1, Manual X1, Fixture X1, Hand Control Box X1, Software Installation Card X1, Force Value Sensor X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
