AIC AD2C-00-BE laboratory ultrapure water equipment, biological experiment water use
AIC AD2C-00-BE laboratory ultra-pure water machine is a special ultra-pure water machine for biological experiment water, the microbial content of the produced water is less than 1/ml, the total organic carbon is less than 5ppb, AD2C is a purification package series water machine, and the inlet water requirements are RO water, distillation water or deionized water.
AIC
-
BIO0021 Puro20 Laboratory Water Purification System, three-stage water 20L/h water storage tank 100L
$ 6550.00 -
BIO0021 Puro10 Laboratory Water Purification System, three-stage water 10L/H water storage tank 30L
$ 5515.00 -
BIO0021 Geno50 Laboratory Water Purification System
$ 7534.00 -
MOLECULAR MP-10L reverse osmosis (RO) water purifier with a water production rate of 10L/h
$ 2216.00 -
GUOHUA 1810-B quartz automatic double pure water distillation, water production speed: 2000~2500ml/h
$ 724.00
Features
âInnovative and patented fully intelligent control system, fully automatic embedded microcomputer integrated control system (ARM9 high-end processor), true color TFT LCD touch screen, and graphical human-machine interface. The operation is simple, convenient and fast, bringing the user closer to the user. Like using a smartphone;
âOnline display of real-time operation data of water production and water intake of the whole system (raw water quality, temperature, ultrapure water quality, ultrapure water intake volume/water intake speed, dynamic display of Water Tank water volume and level). System data self-analysis and comparison, trend prediction, and preventive reminders to avoid experiments being interrupted without warning;
âUltrapure water can be taken quantitatively. The range of quantitative water taking is any integer volume, and the error is ±2ml (<500ml) or 1% (â¥500ml);
âAll monitoring data of the whole system are collected and recorded in real time, without the need for external computer storage, and the data within one year can be directly queried on the water machine;
âCloud service system. Data is collected and stored in real time. Users can directly export data from the device through a USB flash drive, and upload it to the Aikopu cloud service center via the network every month for backup and diagnosis. Aikopu professional engineers will then retrospectively analyze the uploaded data. According to Analyze the results and provide the user with a diagnostic report and preventive maintenance recommendations.

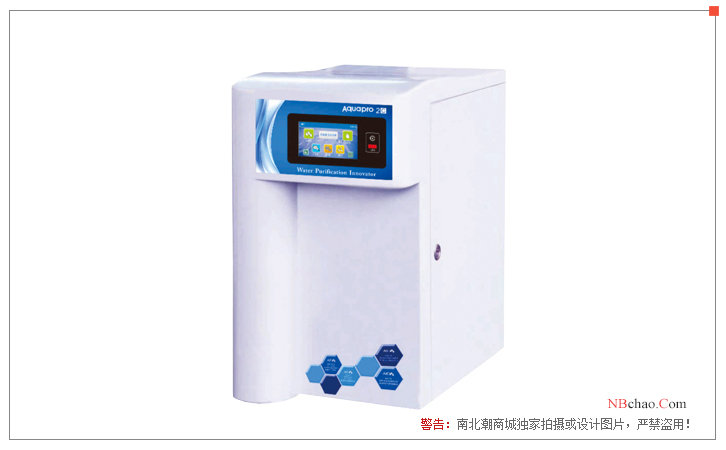

Product display picture
Features
1. Important parts are imported with original packaging, and the materials comply with the standards of the American NSF and Water Quality Association;
2. Standardized module design and production makes product maintenance more secure;
3. The "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.
Application
Cell culture, nuclease-free applications, polymerase chain reaction, DNA sequencing, electrophysiology, endocrine blockade analysis, immunohistochemistry, histology, microbial culture media, nucleic acid electrophoresis, pyrogen-free water, toxicology research, etc. Experimental water.
AD2C-00-BE system configuration list
serial number | name | Model specifications | quantity | unit | Remark |
1 | Patented sterile pure water storage device | 10L | 1 | set | AIC |
2 | Pump | Supporting | 1 | set | Aquapro |
3 | purification column | Supporting | 1 | set | Aquapro |
4 | UV oxidation sterilization device | 185+254nm | 1 | set | Aquapro |
5 | Pyrogen removal ultrafiltration membrane | 6KD | 1 | set | Aquapro |
6 | terminal filter | 0.22um | 1 | set | Sartorius |
7 | SMART-ANGEL Fully intelligent monitoring system | Supporting | 1 | set | AIC |
8 | touch system | Supporting | 1 | set | AIC |
AD2C series parameter comparison
| model | AD2C-00-BE | AD2C-00-CE | AD2C-00-OR | |
| application | Ultrapure water machine suitable for biological experiments | Ultrapure water machine suitable for physical and chemical experiments | Ultrapure water machine suitable for basic physical and chemical experiments | |
| Water production index-ultrapure water | Resistivity | 18.25MΩ.cm25℃ | 18.25MΩ.cm25℃ | 18.25MΩ.cm25℃ |
| total organic carbon | TOCï¼5ppb | TOCï¼10ppb | - | |
| microorganism | <1 piece/ml | <1 piece/ml | - | |
| particles | (ï¼0.2um)ï¼1 piece/ml | (ï¼0.2um)ï¼1 piece/ml | (ï¼0.2um)ï¼1 piece/ml | |
| Bacterial endotoxin | <0.001EU/ml | - | - | |
| Water flow rate** | 1-2 L/min | 1-2L/min(max) | 1-2 L/min | |
| Application | Microbial culture medium, nuclease-free application, polymerase chain reaction, histology, cell culture, DNA sequencing, electrophysiology, endocrine blocking analysis, immunohistochemistry, pyrogen-free water, toxicology research and other biological experimental water. | Gas chromatography analysis, chromatography mass spectrometry, protein electrophoresis, atomic absorption spectrometry, spectrophotometry, VOC analysis, Western blot method, effective liquid chromatography, atomic emission spectrometry, capillary electrophoresis, integrated circuits, NP analyzer, TOC analysis and other physical and chemical experiments and general biological experiments. | Titrator, particle analyzer, pH value measurement, surface tension experiment, autoclave, heating pot, weather resistance Tester, dissolution test, glass dish cleaning, aquarium, gene chip analysis, particle analyzer, biochemical aerobic demand Water for basic physical and chemical experiments such as measurement, heating pot, hydrogen generator, hydroponics, Kedar analysis, stability testing, etc. | |
| Overall dimensions (mm) | H*W*D*:470*290*420 | H*W*D*:470*290*420 | ||
| Incoming water source | Deionized water, distilled water, TOCï¼500ppb, temperature: 5-35℃. | |||
| power supply | 220V/50Hz,150W | |||
AIC AD2C-00-BE Laboratory ultrapure water machineSpecifications
| LIST | VALUE |
|---|---|
| Flow velocity | 1.0~1.5 L/min |
| Ultrapure water quality | 18.2MΩ .cm@25 ℃; TOC < 5ppb; Microorganisms < 1cfu/ml; Granules (> 0.2um) < 1/ml; Bacterial endotoxin < 0.001EU/ml |
| Pure water storage bucket | 10L |
| Inlet source | Deionized water, purified water or distillation water, TOC < 500ppb, temperature 5-35 ℃ |
| Operating Environment | Temperature 5~ 40 ℃, avoid direct sunlight |
| Power | 100-240VAC/50-60Hz, Power: 221W (max) |
| Host size | 470*290*420mm |
| Packing Weight | 21Kg |
| Application | Cell foster, non-nuclease applications, coalescence enzyme chain reaction, DNA sequencing, electrophysiology, endocrine blocking analysis, immunohistochemistry, histology, microbial foster groups, nucleic acid Electrophoresis, pyrogen-free water, toxicological research and other biological experimental water |
| Application standard | ISO9001:2008 Mass management system, NSF and Water Quality Association standards |
AIC AD2C-00-BE Laboratory ultrapure water machine Packing list
host x1, manual x1, certificate x1, warranty contract x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
