APPLENT AT515 Precision DC Resistance Tester 0.01μΩ~ 1GΩ Range Shunt Resistance
APPLENT AT515 precision DC resistance Tester is mainly used to test ultra-low or low parallel resistance multi-channel DC resistance Tester, the test range is 0.01 μΩ~ 1GΩ, AT515 built-in temperature compensation interface, with 1200000 large capacity reading.
Applent
AT515

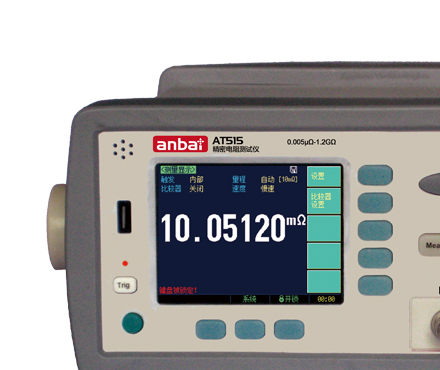

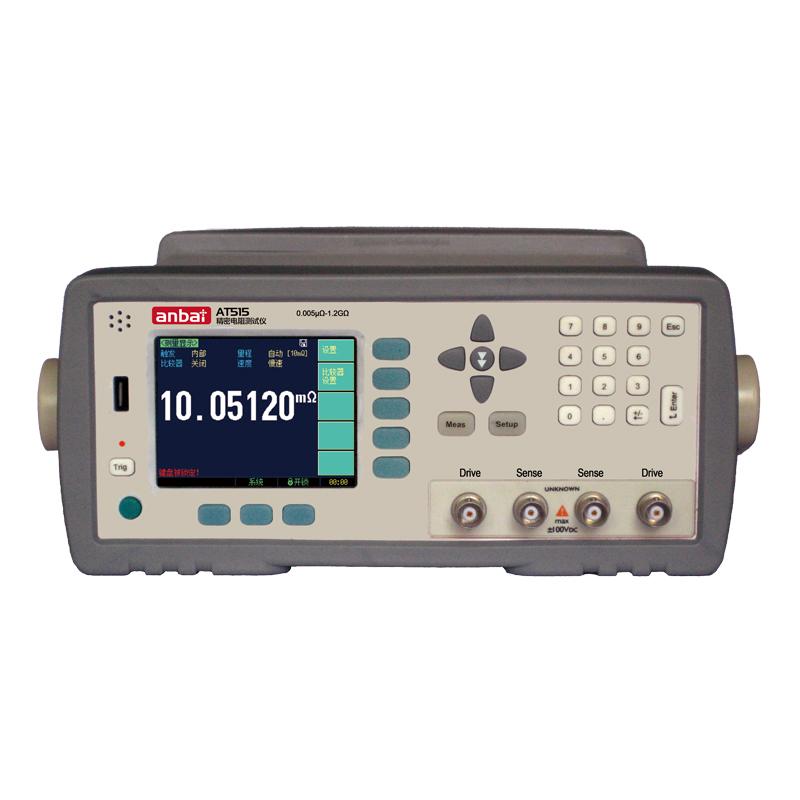

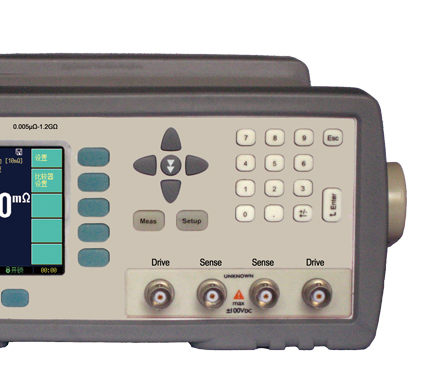

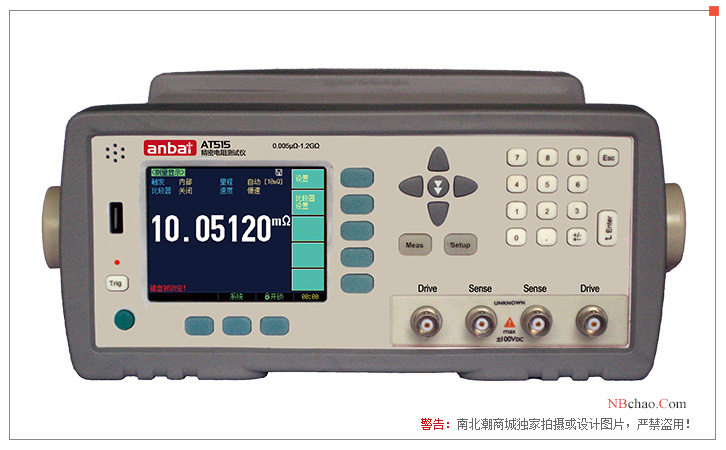

AT515 Precision DC Resistance TesterBrief introduction
The AT515 is a precision DC resistance Tester for testing ultra-low or low shunt resistance, a miniature benchtop instrument controlled by a high-performance ARM microprocessor. The instrument has an accuracy of 0.01% and a resolution of 0.01μΩ, and a measurement range of 0.01μΩ~1GΩ. Superior repetitive measurement accuracy; The resistance value is displayed in 7 digits with 1,200,000 readings and a maximum sampling speed of 6ms. The instrument has a built-in temperature compensation interface to compensate for errors caused by temperature.
The instrument has a built-in 14-step comparator output that can be set to 10 qualifying levels, and all comparator results can be output via the Handler interface.
The instrument is equipped with RS-232 interface as standard, and uses SCPI (Standard Command for Programmable Instrument) to communicate with computers, PLCs or WINCE devices for effective remote control and data acquisition functions.
Performance characteristics
●Temperature compensation function.
●High current test function (open circuit Voltage< 20mV).
●Compatible with SCPI instruction set.
●Excellent repetitive measurement accuracy
● Keypad lock function.
● Data retention function.
●Comparator function and data output function

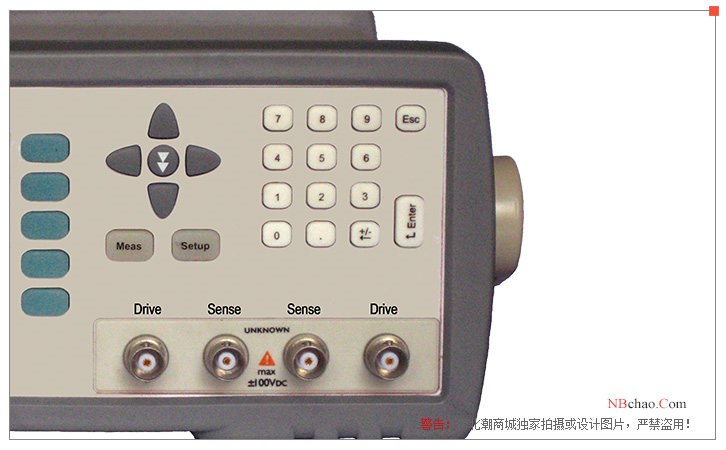

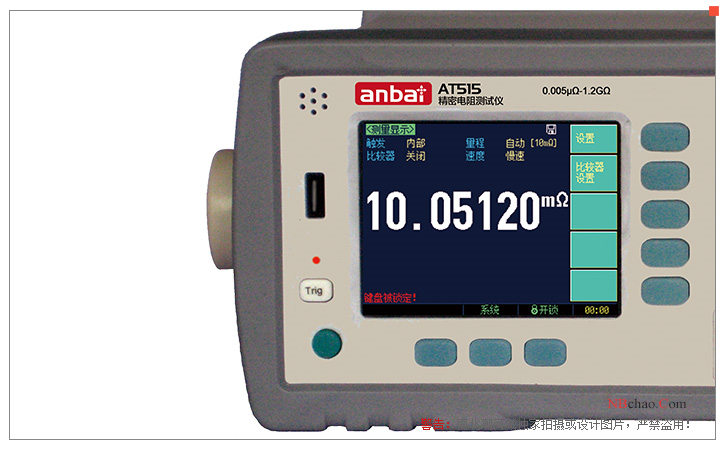

Display diagram
Application
●Measure a variety of high, medium and low value resistors
●Various switch contact resistors
●Enameled wire resistance
●Connector contact resistance
● Relay wire pack and contact resistor
●Winding resistors for transformers, inductors, motors, and deflection coils
●Solder joint contact resistance
●Wire resistance
●Metal riveting resistors for cars, ships, and airplanes
● Printed plate lines and porosity resistors
●Characterize the low-resistance characteristics of electromechanical components
●Metal flaw detection, etc

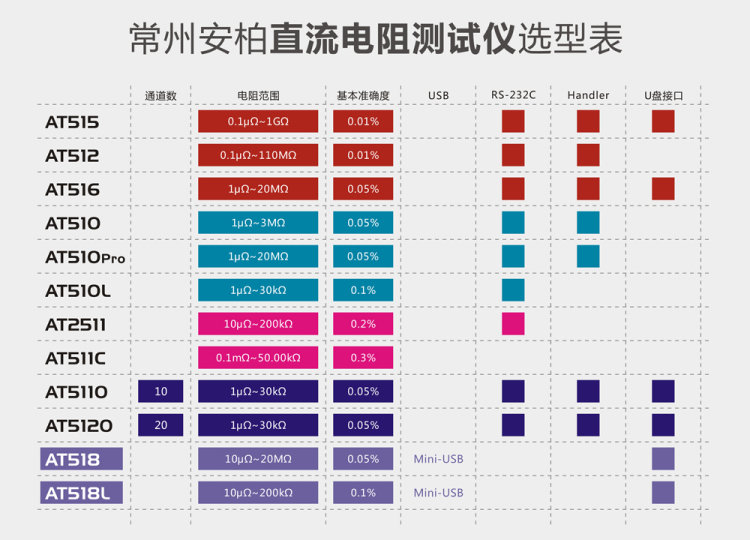

AMBE DC Resistance Tester Selection Table
Applent AT515 DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | DC resistance |
| Basic Precision | 0.01% |
| Measurement range | 0.01μΩ~1GΩ |
| signal source | Current range: 1μA~ 1A |
| range | 11 range automatic and manual |
| Measurement speed | 167 times/second, 30 times/second, 10 times/second, 2 times/second |
| Show results | Direct reading, delta ABS, delta% and sorting results |
| Maximum reading | 1200000 |
| correction | Short circuit clearing in full scale |
| comparator | Built-in 14-speed comparator, display and output BIN1~ BIN10, HIGH, IN, LOW sounds |
| trigger method | Internal trigger, manual trigger, external trigger and remote trigger |
| interface | RS232C interface Handler interface (PLC interface) |
| temperature compensation | Precision: 0.2 ℃ Temperature range: 0~80 ℃ |
| test side | 4-Terminal Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals |
| power requirements | Voltage: 198VAC~ 240VAC Frequency: 50Hz Power: Maximum 15VA |
| size | Outer Dimensions (mm): 264 (W) x107 (H) x350 (D) Inner Dimensions: 216 (W) x88 (H) x323 (D) |
| Weight | 4kg |
Applent AT515 DC resistance Tester Packing list
Host x1, ATL501: Four-terminal Kelvin clip test cable x1, ATL108: RS232 communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
