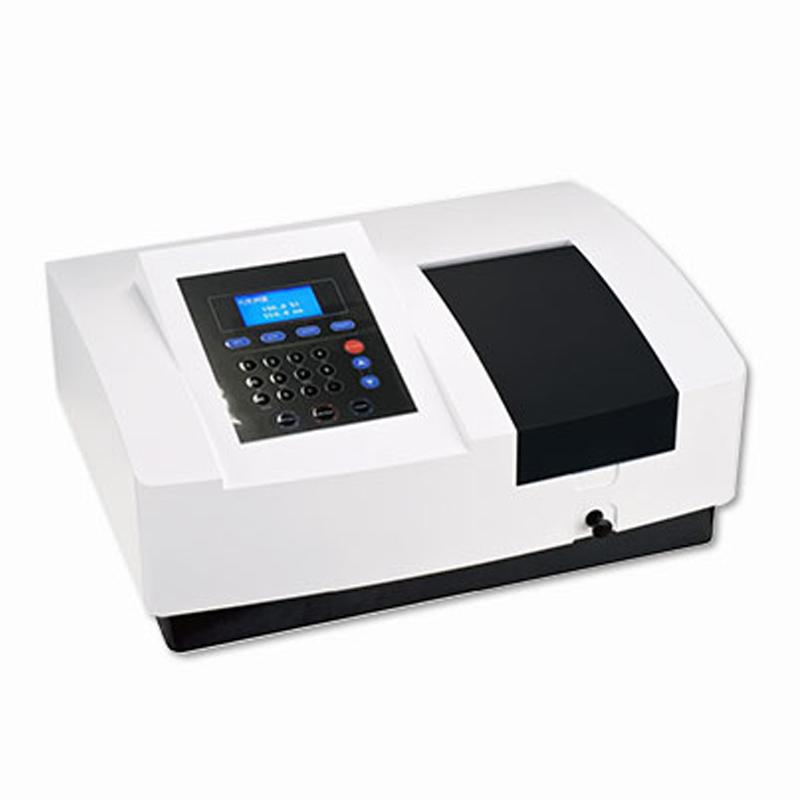

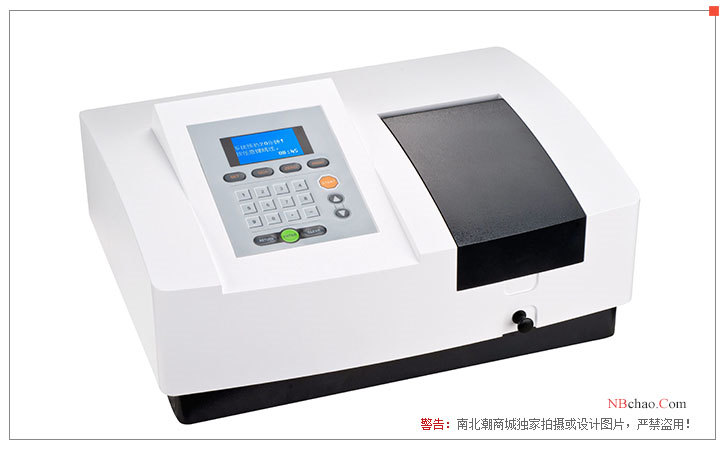

UV756 Ultraviolet Spectrophotometer measurement optical path 100mm

Features

*Automatically save the new wavelength according to the set wavelength

*Compared with ordinary similar products, the stability of measurement has been increased

*Measurable optical distance is 100mm

*Comprehensive control of UV lamp and tungsten lamp function

* Establish quantitative analysis methods based on standard models or input standards

*Can save 50 sets of data records and up to 10 calibration curves

*Optional installation of a software device connected to a computer

Advantages

1. Adopt 1200 lines/mm high-performance grating. The new light source control system makes the switching of the light source of the instrument faster.

2. The precise 2nm bandwidth makes the test data more accurate. Imported long-life light source is used to make the light source switching of the instrument faster.

3. The unique wavelength control system makes the Wavelength Accuracy higher. The improved optical system makes the test more accurate.

4. Imported photoelectric converters are used to make the instrument more sensitive.

5. New microcomputer data processing system. Make the use of the instrument easier and more stable.

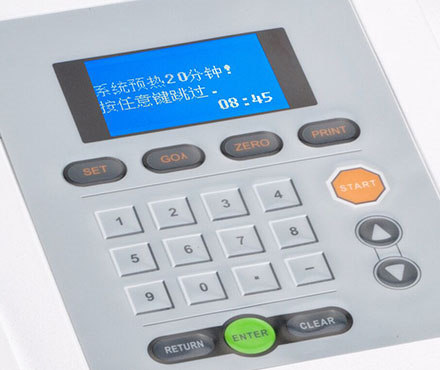

6. Adopt 128*64 dot-matrix liquid crystal display, which can directly display the standard curve and test data, the host can store test data, and a printer is optional .

7. The instrument can be equipped with a disc rotating automatic eight-connected sample holder, which has good reliability and centered light spots (compared to double-row automatic eight-connected racks), so that the instrument has high photometry accuracy.

plan

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
