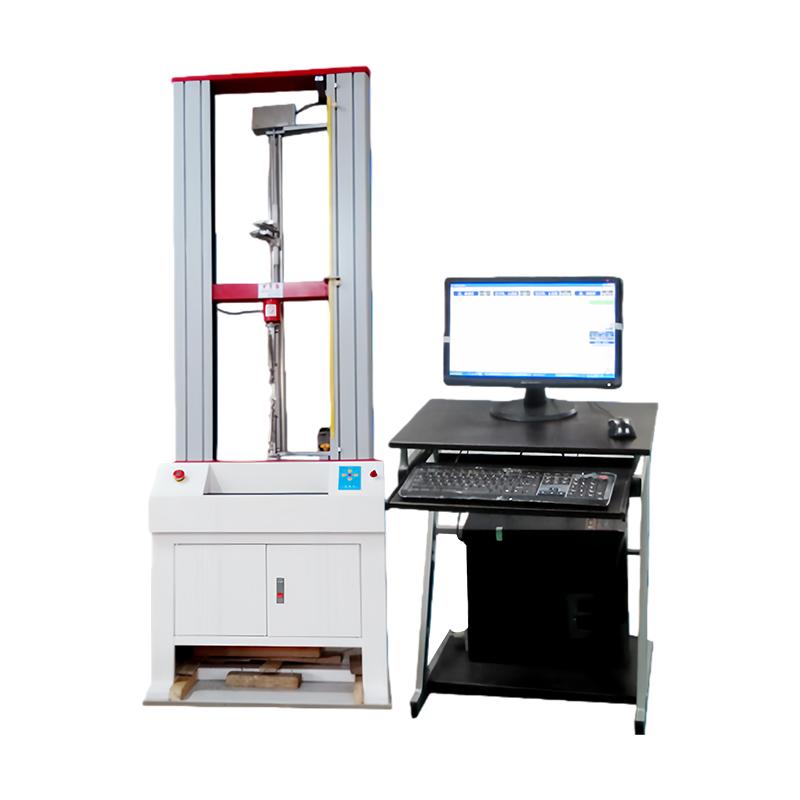

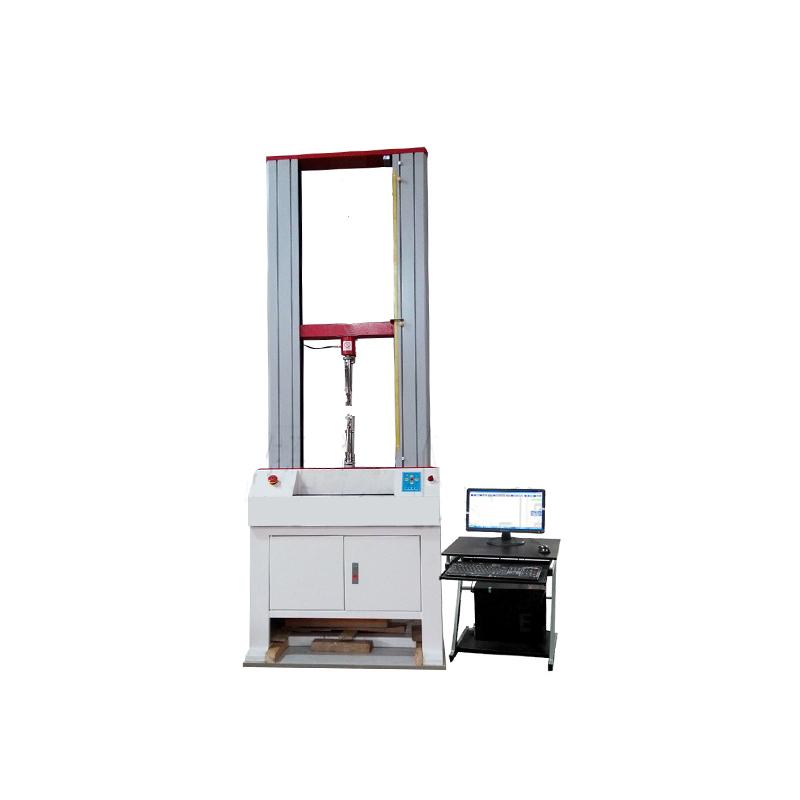

HUIDA HD-1001-A Universal Testing Machine Full computer servo control high-precision testing

Features

1. Huida HD-1001-A material testing machine is a new type of material testing machine with full calculator operation, which is developed to effectively change the shortcomings of traditional material testing machine that is bulky, complex in operation and single in performance.

2. The structure is made of steel plate and aluminum extruded sealing plate treated by high-grade paint, and has built-in high-precision, low-resistance, backlash-free precision screws and guide columns, which improves the load efficiency and structural rigidity;

3. The control system adopts imported universal all-digital AC server to control the AC servo motor with high response frequency to ensure that the transmission system has high efficiency, stable transmission, low noise and speed accuracy can be controlled within ±0.5%;

4. The microcomputer system uses a commercial calculator as the main control machine, and cooperates with the company's QCTech test software to complete all test parameter setting, working state control, data acquisition and processing analysis, result display and printout;

5. The special measurement and control system is specially designed for the microcomputer electronic multi-functional testing machine. Tensile, compression, bending, shear, tearing, and peeling tests can be performed. PC and interface board are used to collect, save, process and print test results. It can calculate the maximum force, yield force, average peeling force, maximum deformation, yield point, elastic modulus and other parameters, and can carry out curve processing, graphical visualization interface, flexible data processing, MS-ACCESS database support, making the system more powerful.

6. The table-top design and high-strength steel frame placement table is easy to sit and stand, and the wide base is beautiful and generous, and it is also convenient to place related accessories and tools;

Application

HD-1001-A materials testing machineIt is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wires and cables, rubber and plastics, paper products and color printing and packaging, adhesive tapes, bags and handbags, textile fibers, textile bags, food, and other industries. It can test the physical properties of various materials and finished products and semi-finished products, and can purchase a variety of different fixtures to do tensile resistance, compression resistance, tensile holding, pressure holding, bending resistance, tearing, peeling, adhesion, shear force and other tests. It is a satisfactory testing and research equipment for factories and enterprises, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.

Meets standards

ISO, ASTM, GB, JIS, EN, BS, DIN, etc.

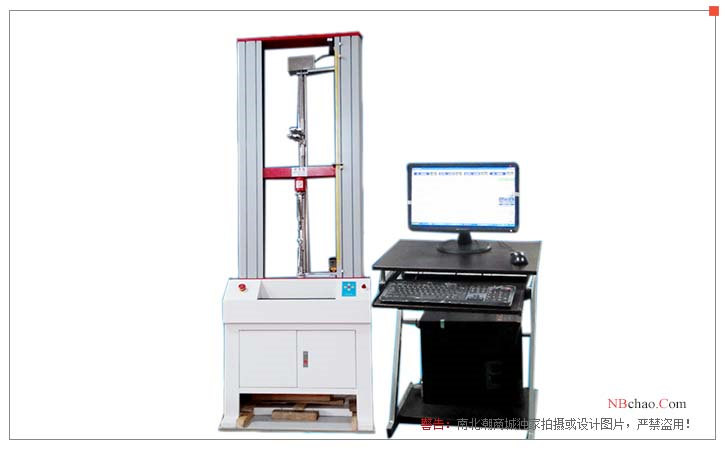

Product display

Software Introduction

1. Windows working platform is adopted, and all parameter settings are processed in the form of dialog boxes, which is simple to operate;

2. Adopt a single screen operation, no need to switch the screen;

3. The software interface has Chinese and English multiple languages, which is easy to switch;

4. The test form mode can be self-planned;

5. The test data can be called directly in the main screen;

6. You can choose to use translation, comparison and other methods to compare the data of multiple curves at the same time;

7. It has a variety of measurement units such as kgf, lbf, N, KN, KPa, and Mpa, and the metric system can be switched;

8. It has the function of automatic return;

9. With automatic correction function, with multi-channel sensor input direct switching;

10. It has the function of custom test method;

11. It has the function of operation and analysis of test data;

12. It has the function of 1, 2, 5, 10, 20, 50 and 100 automatic magnification to achieve the most appropriate size of the graphic automatic switching, and the data acquisition frequency is 6000HZ;

host X1, power cord X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
