Unitec SKY2000-O2(0-30%.VoL) Pump suction oxygen Detector

UNITEC SKY2000-O2 pump suction oxygen Detector, range 0~30%. VoL

The detection range of UNITEC SKY2000-O2 pump suction oxygen Detector is 0~30%. VoL, using electrochemistry principle, resolution is 0.01% VOL, SKY2000-O2 with self-calibration function, zero point calibration function.

Brand

SKU: NB009137

Unitec

Model

SKY2000-O2(0-30%.VoL)

Get Quote

Unitec

Information

Datasheet Catalog Manual

What else did others buy

HONEYEAGLE HNAG1000-HBR Fixed Hydrogen Bromide Detector 0-50PPM

Login
Empaer AASD-EX Lightning Series Handheld Gas Detector

$ 245.00
GUOYUGRA GY/VGD-200-CH2CL2-G (0-50ppm) dichloromethane Detector

$ 518.00
BH-60-CH2O Fixed CH2O Gas Detector with display + alarm

$ 257.00
HUIRUIPU HRP-1000 Gas Detector EX/O2/CO/H2S

$ 399.00

Genuinegoods

Unitec SKY2000-O2(0-30%.VoL) Pump suction oxygen DetectorOverview
Specifications
Comments
FAQs

SKY2000-O2(0-30%.VoL)

Pump suction oxygen Detector

Features

◆ SKY2000-O2 adopts the original imported high-precision electrochemical sensor

◆ USB interface for high-speed data transfer, which can download and print data

◆ Liquid crystal dot matrix display technology, which can display gas types, gas units,Gas concentration values, measured maximums, local time, ambient temperature, etc

◆ Support Chinese and English operation interface, simple and convenient switching

◆ Gas concentration unit PPM, mg/m³The display can be quickly switched

◆ Built-in miniature sampling pump, the suction power of the pump can be adjusted in ten gears

◆ Explosion-proof qualification certification, explosion-proof grade: ExiaII.CT4

Product features

1. Monitor the oxygen concentration in the environment or confined space and give an alarm

2. With self-calibration function and zero point calibration function, the gas monitoring is more accurate and reliable

3. One-key factory reset function, which can avoid the trouble of misoperation

4. With temperature and pressure compensation, it can well realize the compensation of gas concentration in different temperature and pressure environments

5. Two-level sound and light alarm, and the alarm point can be set by itself

6. Large-capacity lithium polymer rechargeable battery

7. Pump suction sampling mode, the suction power of the pump is adjustable

8. The shell is made of high-strength special engineering plastics, which is anti-slip, waterproof, dustproof and explosion-proof

9. Exquisite and high-end aluminum alloy suitcase

Product Applications

● Furniture, flooring, wallpaper, paints, gardening, interior decoration and renovation, dyes, papermaking, food, corrosion

● Disinfection, fertilizers, resins, adhesives and pesticides, raw materials, samples, processes and breeding plants, garbage treatment plants, perm places

● Biology, home environmental protection, animal husbandry, greenhouse cultivation, warehousing and logistics, brewing and fermentation, and agricultural production in the production workshop

Display diagram

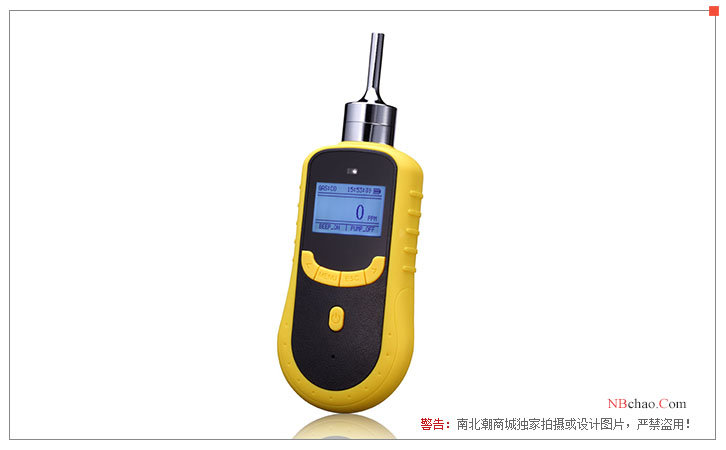

Yuante SKY2000-O2 pump oxygen Detector display map

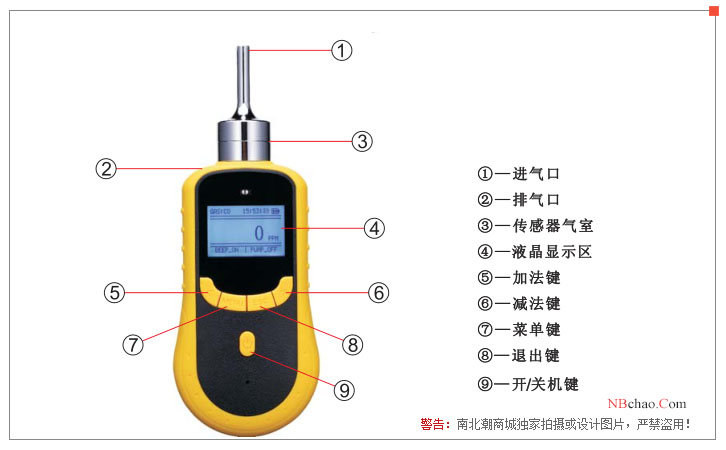

Structure diagram of Yuante SKY2000-O2 pump-suction oxygen Detector

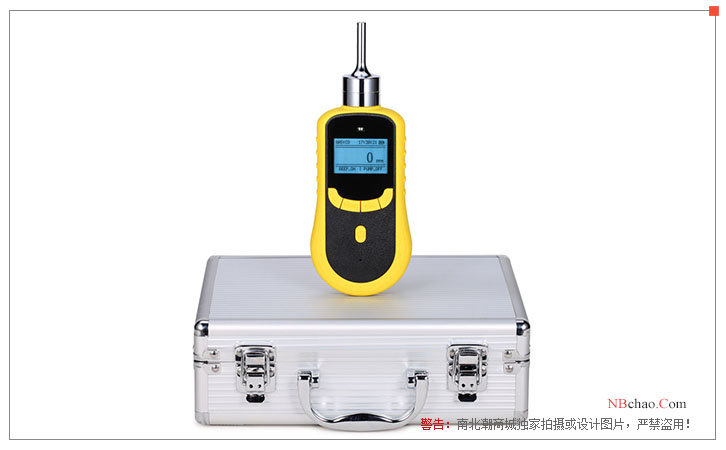

Yuante SKY2000-O2 pump oxygen Detector packaging drawing

Unitec SKY2000-O2(0-30%.VoL) Pump suction oxygen DetectorSpecifications

LIST	VALUE
Detect gas	Oxygen O2
Sensors principle	electrochemistry
Sampling method	Pump suction
O2-range	0~30%VoL
O2- resolution	0.01%VOL
O2- detection Accuracy	2%~3% F.S.
Interface	USB
Response time	≤10s
Repeatability	≤±1%
Linearity	≤±1%
Zero drift	≤ +/- 1% (F. S/year)
Display	LCD dot matrix display technology
Operating language	Support Chinese and English
Display unit	Multiple Gas Unit switch display
Operating temperature	-20~50℃
Environmental humidity	0~95%RH
Explosion-proof sign	Exib ⅡCT4
Protection level	IP66
Alarm mode	Sound, light, vibration
Operating Time	100H (turn off the pump)
Dimension	2057532mm
Weight	300g

Unitec SKY2000-O2(0-30%.VoL) Pump suction oxygen Detector Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

How to calibrate the zero point of a pump suction oxygen detector?

[A]

Hello, the zero-point calibration needs to be carried out in clean air. It is best to perform a zero-point calibration after an alarm occurs. Press menu to enter the parameter setting mode, select "zero-point calibration", press the power button to enter the mode, and observe the value of "real-time concentration". After the real-time concentration value stabilizes, if the value is not zero and the drift is too large, the zero-point calibration can be carried out. Press the power button, the real-time concentration will be returned to zero at this time, and when press esc to return to the measurement mode, the gas concentration value will also be displayed as 0.

[Q]

Sky2000-O2 If the measurement of over-range gas concentration, how to solve?

[A]

Hello, in the process of using the oxygen detector, avoid over-range operation. If you are not careful, you should quickly evacuate the instrument from the detection site and place it in clean air for more than half an hour to observe whether the concentration value drops. If it can drop, then wait until it drops to zero and then shut down. The next time you turn it on, you will be calibrated at zero. If the concentration value displayed by the instrument has always been full scale, it needs to be repaired and replaced Sensors.

[Q]

SKY2000-O2 How to turn on the gas pump? How to switch the gas concentration unit?

[A]

Hello, long press > about 3 seconds to quickly turn on or off the air pump. To switch the concentration unit, you need to long press esc for about 3 seconds.
