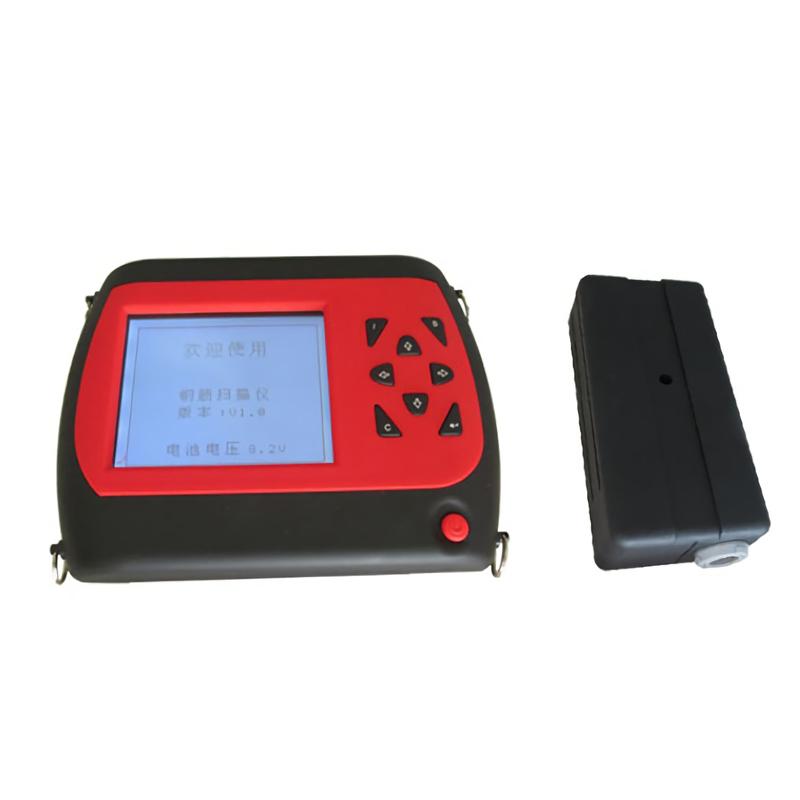

KOSON KS-30 split bar scanner for thickness and diameter measurement

The KOSON KS-30 split steel bar scanner uses the principle of electromagnetic pulse to detect the diameter of steel bars and the thickness of the protective layer. The KS-30 split steel bar scanner has two thickness ranges.

Brand

SKU: NB009569

KOSON

Model

KS-30

Service

KOSON shop

Information

Datasheet Catalog

What else did others buy

TIANDIXINGHUO XH-10T Bolt Tension Gauge, hydraulic cylinder, hollow self-resetting 100kN

$ 560.00
Runjie RJ-5 miniature drawing instrument, pressure measuring range 0~50kN

$ 458.00
TIANDIXINGHUO XH-50TS intelligent bolt drawing instrument, bolt pulling machine 300kN

$ 1148.00
Runjie RJ-V3 Miniature Drawing Instrument 30KN

$ 697.00
KOSON KS-71 integrated steel bar scanner, the measuring range is 1~ 185mm

$ 871.00

Genuinegoods

KOSON KS-30 Split bar scannerOverview
Specifications
Comments
FAQs

KS-30

Split bar scanner

Detection principle

KOSON KS-30 split steel bar scanner adopts the electromagnetic pulse method with super anti-interference ability for non-damage detection.

Features

Detection of the position, distribution and direction of the reinforcement, the thickness of the protective layer and the diameter of the reinforcement in concrete structure engineering;
Construction quality acceptance inspection of concrete structures of buildings;
Detection and detection of steel bars in bridges, tunnels and other structures;
Detection data storage, viewing function, data transmission function.

According to the standard

Code for Acceptance of Construction Quality of Concrete Structure Engineering GB 50204-2015

Technical Standard for On-site Inspection of Concrete Structures GBT50784-2013

Technical specification for the detection of reinforcement in concrete, JGJ/T152-2008

Technical Standard for Detection of Building Structures GB/T50344-2004

"Technical specification for detecting the thickness of the protective layer and the diameter of the reinforcement by electromagnetic induction" DB11/T365-2006

"Specification for Measurement and Calibration of Reinforcement Protective Layer Thickness Measuring Instrument and Floor Thickness Measuring Instrument" JJF1224-2009

Product display diagram

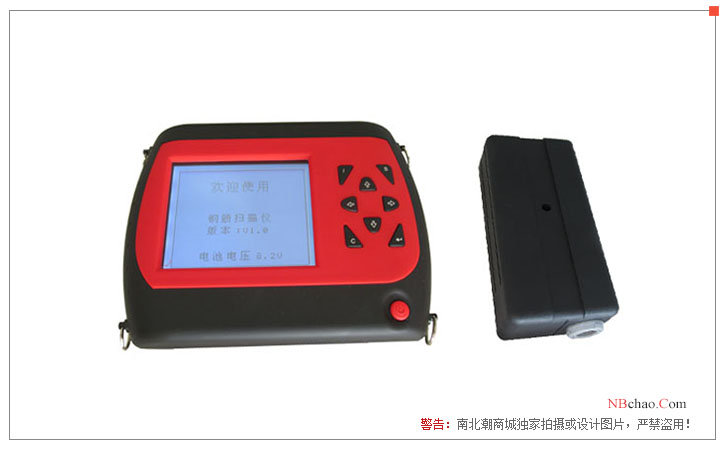

KOSON KS-30 split steel bars scanner display diagram

KOSON KS-30 Split bar scannerSpecifications

LIST	VALUE
Protective layer thickness measurement (nominal) range	The first Measurement Range: 6mm~ 90mm; the second Measurement Range: 7mm~ 200mm;
Measurement range of steel bar diameter	Ф6~Ф50mm
Steel protective layer thickness Measured value MPE	Protective layer thickness first range (nominal) range 6~ 59mm ：≤ +/- 1mm; 60~6 9mm ：≤ +/- 2mm; 70~90mm ：≤ +/- 4mm; protective layer thickness second range (nominal) range 7~ 7 9mm ：≤ +/- 1mm; 80~119 mm ：≤ +/- 2mm; 120~200mm ：≤ +/- 4mm
Measured value MPE range	+/- 1st gear
Display	160×128mm
Normal operation Environmental requirements	Operating temperature: -10 ℃~ + 40 ℃; Relative Humidity: < 90% RH (no corrosion gas in the air; no strong electromagnetic interference;)
Power Supply	Rechargeable battery with a Power Supply time of up to 50 hours
Host size	220×165×90mm
Probe Volume	105×55×30mm

KOSON KS-30 Split bar scanner Packing list

host x1, probe X1, charger X1, cable X1, software disc X1, instrument case X1, manual x1, warranty card x1, certificate x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Cement pole protective layer thickness test, right?

[A]

Sure.
