LANDTEK VM-6380-3 VibratIon Meter (three channels)

The LANDTEK VM-6380-3 Vibration Sensor is a three-channel Vibration Sensor with three Piezoelectric Vibration Sensors. The VM-6380-3 has a measurement Acceleration range of 0.1 to 400m/s ² with AC signal output function.

LANDTEK VM-6380-3 VibratIon Meter (three channels)Key Spec.

Displacement Measurement range
0.001~ 4.0mm Peak-Peak 0.04~ 160.0mil
Acceleration Measurement range
0.1~400m/s² 峰值0.3~1312ft/s² 0.0~40g
Speed Measurement range
0.01~ 400mm/s True RMS 0.004~ 16.0inch/s
VM-6380-3 VibratIon Meter (three channels)
Details

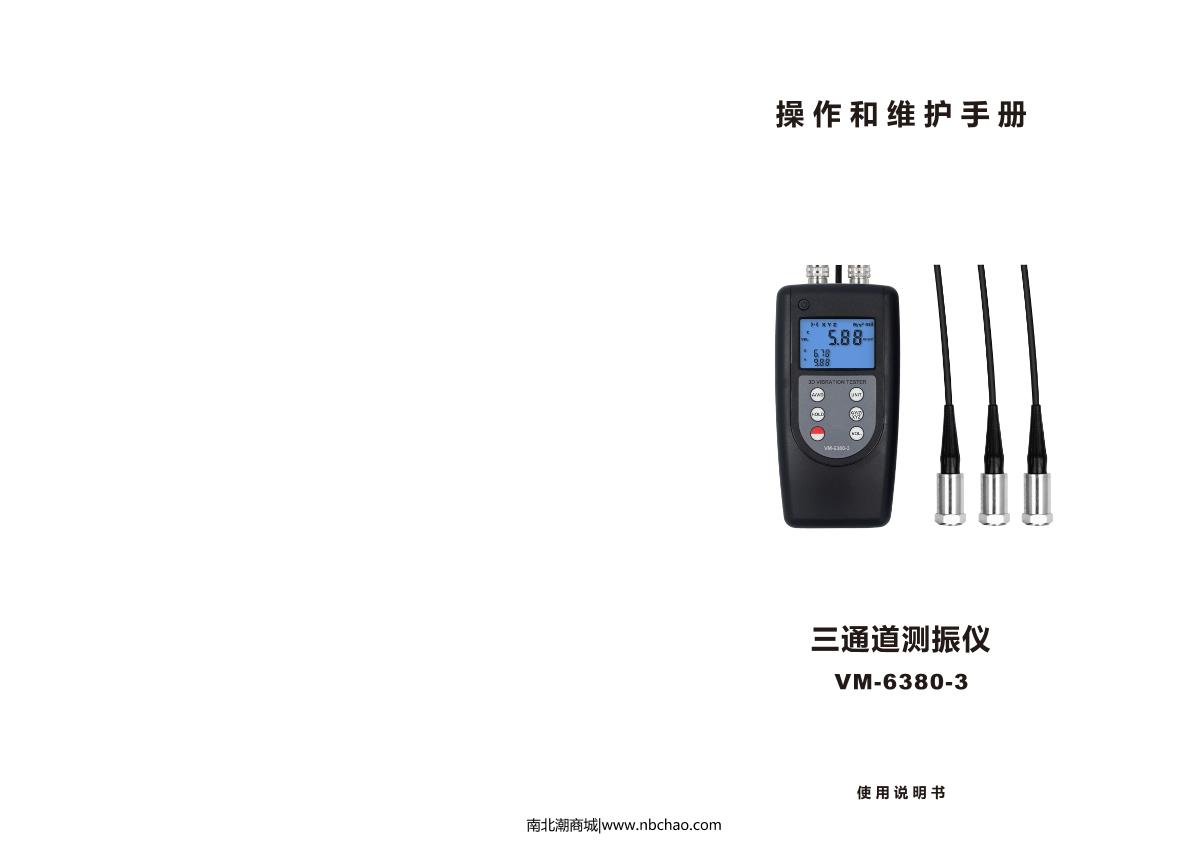

LANDTEK VM-6380-3 VibratIon Meter (three channels)Manual page 1

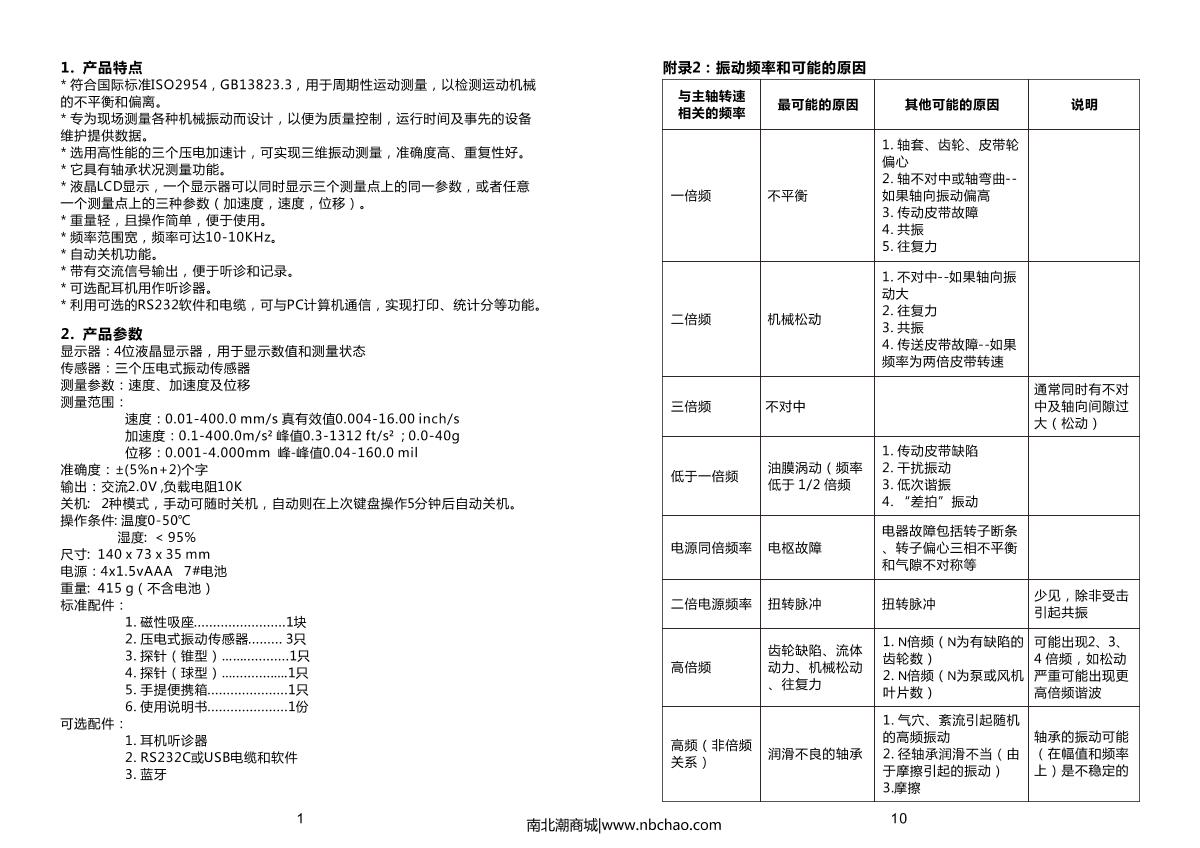

LANDTEK VM-6380-3 VibratIon Meter (three channels)Manual page 2

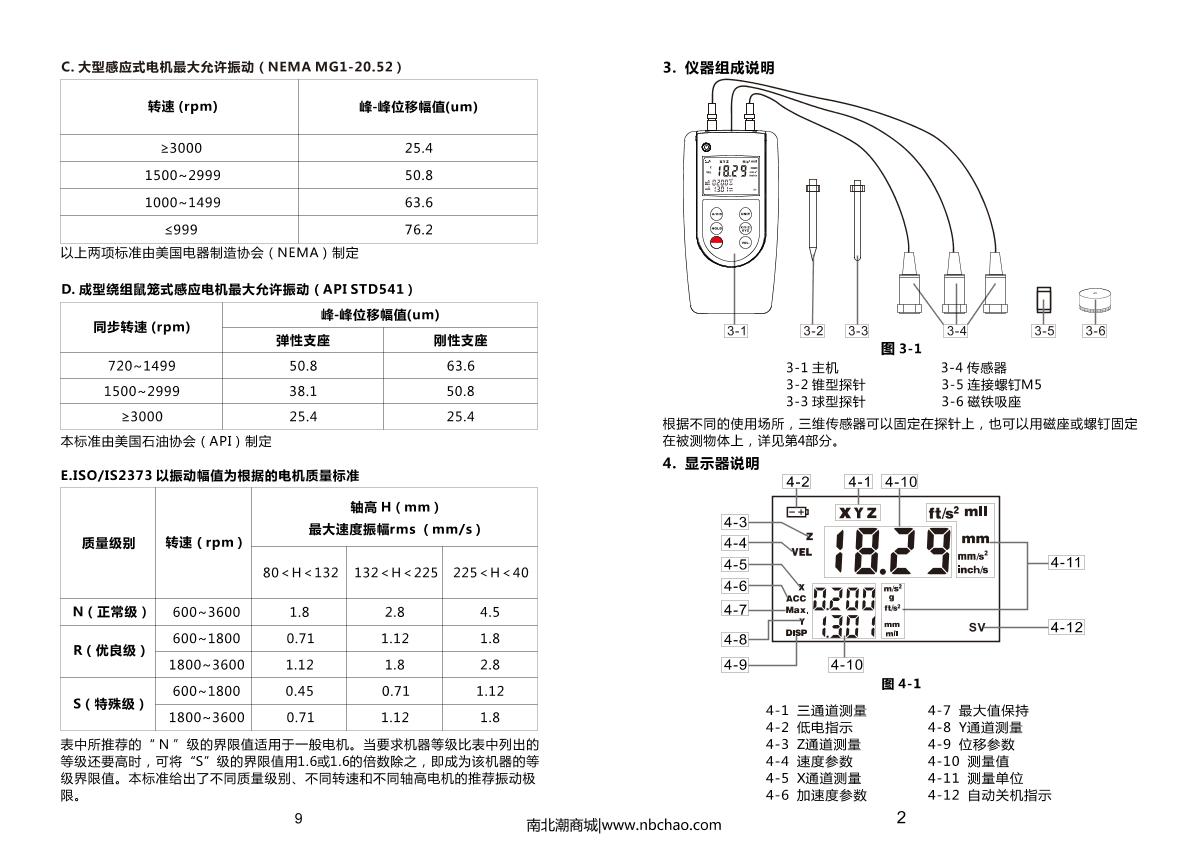

LANDTEK VM-6380-3 VibratIon Meter (three channels)Manual page 3
LANDTEK VM-6380-3 VibratIon Meter (three channels)Manual page 4
LANDTEK VM-6380-3 VibratIon Meter (three channels)Manual page 5
1 page unread, continue reading?
This manual is collected and sorted by the NBCLab, and does not guarantee the timeliness and accuracy. It is only for reference.
