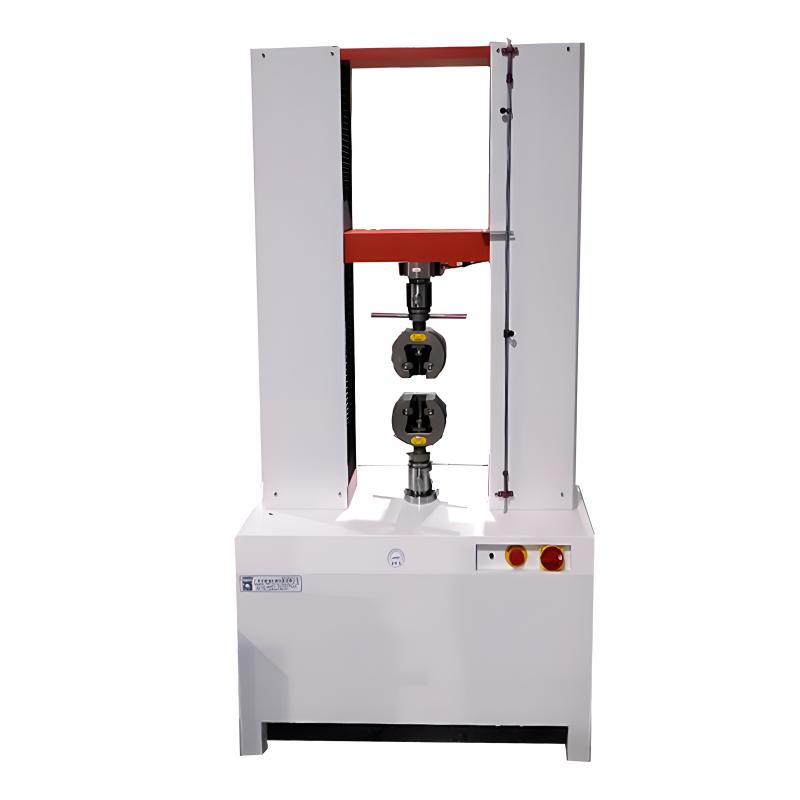

NBC-1023-2 Computer Tensile Tester
Force Precision +/- 0.5%, force resolution 1/300000, effective force range 1~ 100% F. S, deformation indication Precision +/- 0.5%, capacity selection 5T, effective Test space about 380mm.
Factory
NBC-1023-2
-
Patek Jushi LY-7012B Universal material Tensile Tester 500KG
$ 1439.00 -
CHENCHI WDL-05 Intelligent Tensile Tester Tester 500N
$ 1544.00 -
Material Testing Machine NBC-5000N Double Column Tensile Tester
$ 3491.00 -
Factory direct sales NBC-1024/BJ Double column Tensile machine Full digital control high-precision measurement
$ 3646.00 -
Jinan HORIZON DLS-05 Electronic Tensile Tester 100N 1000mm
$ 2033.00
Introduction
The Tensile Testing Machine is mainly used for the testing of tensile, compression, bending, shear, peeling, tearing and other mechanical properties of various metals, non-metals and composite materials. The system adopts microcomputer closed-loop control, which has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement. The equipment is suitable for metals, adhesives, pipes, profiles, aerospace, petrochemical, waterproofing membranes, wires and cables, textiles, fibers, rubber, ceramics, food,
Pharmaceutical packaging, geotextiles, film, wood, paper and other manufacturing industries, as well as product quality supervision departments at all levels, but also suitable for colleges and universities to carry out teaching demonstration work.
The design of the main machine of the testing machine has the characteristics of beautiful appearance, convenient operation, stable and reliable performance, no pollution, low noise and high efficiency. The design of the auxiliary device matches the main engine, and the structure is wedge-shaped translational, and the specimen is not subject to additional force. Easy, reliable and non-slippery clamping.
Testing machine standards
GB/T16491-2008, GB/T228 2002, GB/T232, GB/T7314 and other implementation standards
Factory NBC-1023-2 Computer Tensile TesterSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 5T |
| Force Precision | ±0.5% |
| Force resolution | 1/300000 |
| Precision indication | ±0.5% |
| Test speed range | 50~300mm/min (can be set arbitrarily) |
| test maximum stroke | Effective 500mm |
| Test space | Left and right 380mm, front and rear < unk > |
| Unit switch | g、kg、N、LB、KN |
| shutdown mode | Upper and lower limit safety settings, emergency stop button, program power and elongation settings |
| How to take points | Manual point and preset point (20 points) during the test can be used for tensile and pressure test |
| Machine size | 850×600×1800mm(W×D×H) |
| Machine Weight | About 450kg |
Factory NBC-1023-2 Computer Tensile Tester Packing list
host X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
