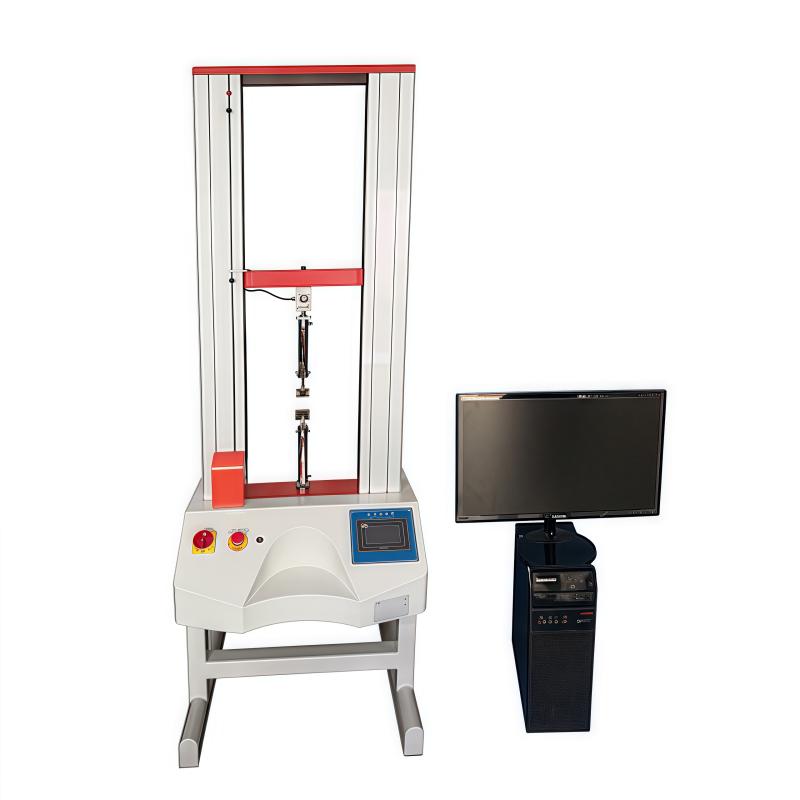

Material Testing Machine NBC-5000N Double Column Tensile Tester

Capacity selection 500kg, force measurement Precision +/- 0.5%, force measurement resolution 1/300000, effective force measurement range 1~ 100% F.S, deformation indication Precision +/- 0.5%, Test speed range 50~300mm/min (can be arbitrarily set), test maximum stroke effective 500mm, effective Test space left and right 380mm, front and rear < unk >

Brand

SKU: NB050210

Factory

Model

NBC-5000N

Price

$ 3517.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Factory shop

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

Factory NBC-5000N Tensile TesterOverview
Specifications
Comments
FAQs

NBC-5000N

Tensile Tester

Product Use:

It is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wires and cables, rubber and plastics, paper products and color printing and packaging, adhesive tape, bags and handbags, textile fibers, food and other industries. It can test the physical properties of various materials and finished products and semi-finished products, and can purchase a variety of different fixtures to do tensile, compressive, tensile, pressure-bearing, bending, tearing, peeling, adhesion, shear and other tests.

peculiarity

1. The control system adopts a fully digital AC motor to control the frequency, which ensures that the transmission system has high efficiency, smooth transmission, low noise, and speed accuracy can be controlled within ±0.5%;

2. The machine structure adopts painted aluminum extrusion sealing plate with built-in high-precision, low-resistance, backlash-free double roller screw and guide column, which improves load efficiency and structural rigidity.

3. The product has stable and reliable performance, high measurement accuracy, powerful test software, and easy to understand.

Safety device

Stroke protection: set as upper and lower limit protection switches to prevent exceeding the preset stroke;

Force protection: The system can set the maximum force value to prevent exceeding the sensor calibration value;

Emergency stop device: There is an emergency stop switch on the right side of the base, which can handle emergencies.

Factory NBC-5000N Tensile TesterSpecifications

LIST	VALUE
Capacity selection	500kg
Force Precision	±0.5 %
Force resolution	1/300000
Effective force range	1～100%F.S
Precision indication	±0.5%
Test speed range	50~300mm/min (can be set arbitrarily)
test maximum stroke	Effective 500mm
Test space	Left and right 380mm, front and rear < unk >
Unit switch	g、kg、N、LB、KN
shutdown mode	Upper and lower limit safety settings, emergency stop button, program power and elongation settings
How to take points	Manual point and preset point (20 points) during the test can be used for tensile and pressure test
Machine size	850×510×2000mm(W×D×H)
Machine Weight	About 120kg

Factory NBC-5000N Tensile Tester Packing list

host X1, base x1, computer x1, strong pliers fixture x1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Our factory needs to test the tensile strength of metal materials. What instrument is suitable?

[A]

This instrument is suitable for metal material testing, can carry out tensile, compression and other physical performance tests, Precision measurement of +/- 0.5%, can accurately meet the needs of factory quality control.

[Q]

Can the machine do the holding pressure test? How is the Test accuracy?

[A]

Yes. The testing machine supports tensile and pressure test functions, with a force measurement resolution of 1/300000, a deformation indication Precision +/- 0.5%, and 20 preset point taking functions, which can meet the requirements of high-precision persistence testing.

[Q]

Which instrument is recommended for precise tensile and compressive performance testing of metal products?

[A]

NBC-5000N double column Tensile machine is recommended. The instrument has a capacity of 500kg, a force measurement Precision of up to +/- 0.5%, and an effective force measurement range of 1~ 100% F. S, which can meet the high-precision requirements of metal material testing. It adopts high-precision, low resistance, no gap double roller screw and guide column to ensure high efficiency and structural rigidity of the load during the test process, and is very suitable for physical performance testing of metal material products such as tensile and compressive.

[Q]

You need an instrument that can perform various tests (e.g. tear, disbonding, adhesion) and has complete safety devices. Which one should you choose?

[A]

NBC-5000N double column Tensile machine can carry out tensile, compression, tear, disbonding, adhesion, shear and other tests through the purchase of different fixtures, with comprehensive functions. Equipped with complete safety devices, including upper and lower limit protection switches, system maximum force setting protection and emergency stop switches, it can effectively deal with various emergencies and ensure safe operation.

[Q]

What industries is this Tensile machine suitable for? What types of tests can be performed?

[A]

It is suitable for aerospace, Petrochemicals, machinery manufacturing, metal materials and products, Wire and cable, rubber and plastic, paper and color printing Encasement, adhesive tape, luggage and handbags, Spinning & weaving fibers, food and other industries. Different fixtures can be purchased for tensile, compression, tensile, compression, bending, tearing, disbonding, adhesion, shear and other tests.
