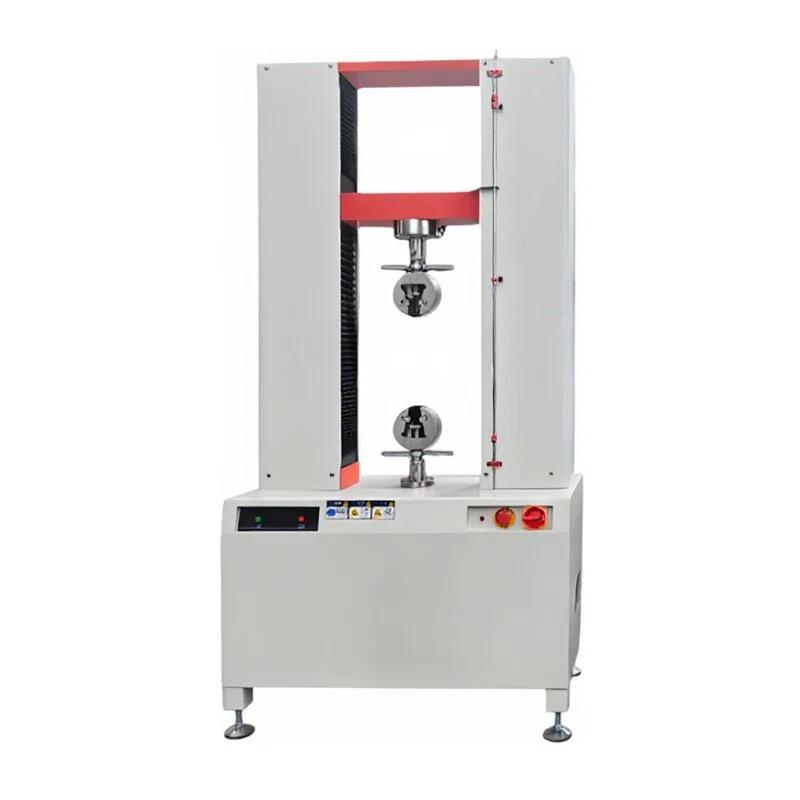

Factory NBC-1024-3 Universal Testing Machine

Factory direct sales NBC-1024-3 Universal Testing Machine Metal Non-metallic material Mechanical performance test 10T

Microcomputer closed-loop control, Precision of force measurement up to +/- 0.5%, Test speed range of 50-300mm/min can be arbitrarily set. With a wide range of loading speed and force measurement, high control accuracy of load and displacement measurement, reliable sample clamping without slipping.

Brand

SKU: NB050828

Factory

Model

NBC-1024-3

Price

$ 7511.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Factory shop

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

Factory NBC-1024-3 Universal Testing MachineOverview
Specifications
Comments
FAQs

NBC-1024-3

Universal Testing Machine

Product Introduction

The tensile testing machine is mainly used for the testing of tensile, compression, bending, shear, peeling, tearing and other mechanical properties of various metals, non-metals and composite materials. The system adopts microcomputer closed-loop control, with a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement. This equipment is suitable for metal, adhesive, pipe, profile, aerospace, petrochemical, waterproof membrane, wire and cable, textile, fiber, rubber, ceramics, food, packaging, geotextile, film, wood, paper and other manufacturing industries and product quality supervision departments at all levels, and is also suitable for teaching and demonstration work in colleges and universities.

The design of the main unit of the testing machine has the characteristics of beautiful appearance, easy operation, stable and reliable performance, no pollution, low noise and high efficiency. The design of the assistive device matches the main machine, the structure is wedge-shaped translation type, and the specimen is not subject to additional force. Clamping is easy, reliable, and does not slip.

Testing machine standards - GB/T16491-2008, GB/T228 2002, GB/T232, GB/T7314 and other implementation standards

Factory NBC-1024-3 Universal Testing MachineSpecifications

LIST	VALUE
Capacity selection	10T
Force Precision	±0.5 %
Force resolution	1/300000
Measurement range	1～100%F.S
Precision indication	±0.5%
Test speed range	50~ 300Mm/min (can be set arbitrarily)
Test Maximum Travel	Effective 500mm
Test space	Left and right 380mm, front and rear < unk >
Unit switch	g、kg、N、LB、KN
shutdown mode	Upper and lower limit safety settings, emergency stop button, program power and elongation settings
How to take points	Manual point and preset point (20 points) during the test can be used for tensile and pressure test
Machine size	850×600×1800mm(W×D×H)
Machine weight	About 450kg

Factory NBC-1024-3 Universal Testing Machine Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Our factory needs to test the tensile performance of metal materials, is there a suitable Universal Testing Machine recommendation?

[A]

NBC-1024-3 Universal Testing Machine is recommended. It is specially used for mechanical testing of metal materials such as tensile and compression, with a force measurement accuracy of +/- 0.5%. It can accurately evaluate the tensile strength and elongation of materials. It fully complies with metal testing standards such as GB/T228 and is suitable for factory quality control.

[Q]

Our laboratory often tests non-metallic materials such as rubber and plastics. Which instrument should we choose?

[A]

The NBC-1024-3 Universal Testing Machine is also suitable. It supports non-metallic and composite testing, such as rubber tearing and plastic bending. The speed range is adjustable from 50-300mm/min, which can flexibly adapt to the testing requirements of different materials. It is commonly used in the chemical and rubber manufacturing industries.

[Q]

Our factory needs to test the tensile strength of metal materials. Is this Universal Testing Machine suitable?

[A]

Applicable. This NBC-1024-3 Universal Testing Machine is specially used for tensile, compression and other mechanical tests of metals, Non-metallic and other materials. It meets GB/T228 and other metal tensile test standards. It has high force measurement accuracy (+/- 0.5%) and adjustable speed. It can accurately evaluate the tensile strength of metals.

[Q]

We do waterproof membrane and Wire and cable testing, what is the main test with this equipment?

[A]

This device is suitable for testing the disbonding, Tear strength and tensile performance of Wire and cable. It supports a variety of test modes such as tensile, shear, disbonding, etc. Travel and space are sufficient to simulate the actual stress situation and help you control the product mass.
