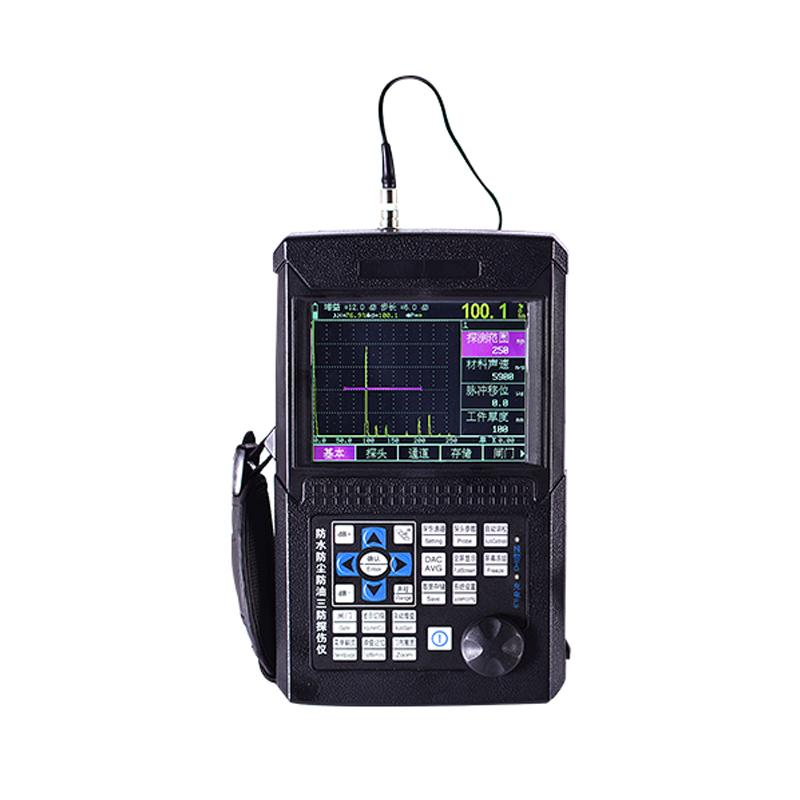

LEEB LBTQ501 ultrasonic flaw detection (UFD) instrument, three-proof design highlight color screen 100 channels

Product Introduction

Digital ultrasonic flaw detector can detect, locate, evaluate and diagnose a variety of internal defects such as cracks, welds, pores, sand holes, inclusions, folds, etc. in a fast, convenient, damage-free and accurate manner, and is used in electric power, petrochemical, boiler pressure vessel, steel structure, aerospace, railway transportation, automobile, machinery and other fields. It is an important instrument in the testing industry. The true three-proof design can ensure that users are not eroded by rain, oil, dust, etc. in complex sites and fields, and greatly extend the service life of the flaw detector

Product features:

The buttons are simple and easy to operate;

The large screen is highlighted, which can meet the requirements of flaw detection in sunlight and culverts.

Key features:

• High-precision quantification and positioning, suitable for the requirements of near and far distance flaw detection;

• The near-field blind spot is small, which is suitable for the requirements of small pipe diameter and thin-walled pipe flaw detection.

• Automatic calibration: one-click automatic calibration, easy to operate, automatically test the "zero point", "K value", "front" of the probe and the "speed of sound" of the material;

• Automatically display the defect echo position (depth d, horizontal p, distance s, amplitude, equivalent dB, aperture ф value);

• Freely switch between three scales (depth d, horizontal p, distance s);

• Automatic gain, echo envelope, and peak memory functions improve the efficiency of flaw detection.

• φ value calculation: straight probe forging flaw detection, find the highest wave of defects to automatically convert the hole diameter ф value, and automatically calculate the large flat bottom;

• 100 separate flaw detection channels (expandable), which can freely input and store flaw detection standards in any industry, and there is no need to carry test blocks for on-site flaw detection;

• It can freely store and replay 500 A-scan waveforms and data;

• DAC and AVG are automatically generated and can be produced in sections, and the sampling point is not limited, and can be corrected and compensated;

• 13 built-in flaw detection standards can be adjusted;

• You can freely input any industry standard;

• The emission pulse width and intensity are adjustable;

• communicate with the computer to realize computer data management, and export the flaw detection report in Excel format and A4 paper;

• IP65 standard aluminum-magnesium alloy shell, strong and low wear, waterproof and dustproof, good anti-interference ability;

• 260,000 colors true color screen ultra-bright display, adjustable brightness, suitable for strong light and low light working environment;

• Performance: safe and environmentally friendly lithium battery powered by 10 hours of continuous work.

• Real-time clock recording: real-time tracking record of flaw detection date and time, and storage;

• Power loss protection, stored data will not be lost;

• Flaw detection parameters can be automatically tested or preset;

• Digital suppression without affecting gain and linearity;

• Gain compensation: Db attenuation caused by surface roughness, curved surfaces, long-distance flaw detection of thick workpieces and other factors can be corrected.

Accessibility

There are two input methods: angle and K value

Echo frequency analysis

Power status indication

The sound and light alarm of the gate

DAC sound and light alarm

Screen freezing and unfreezing

Clock display

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
