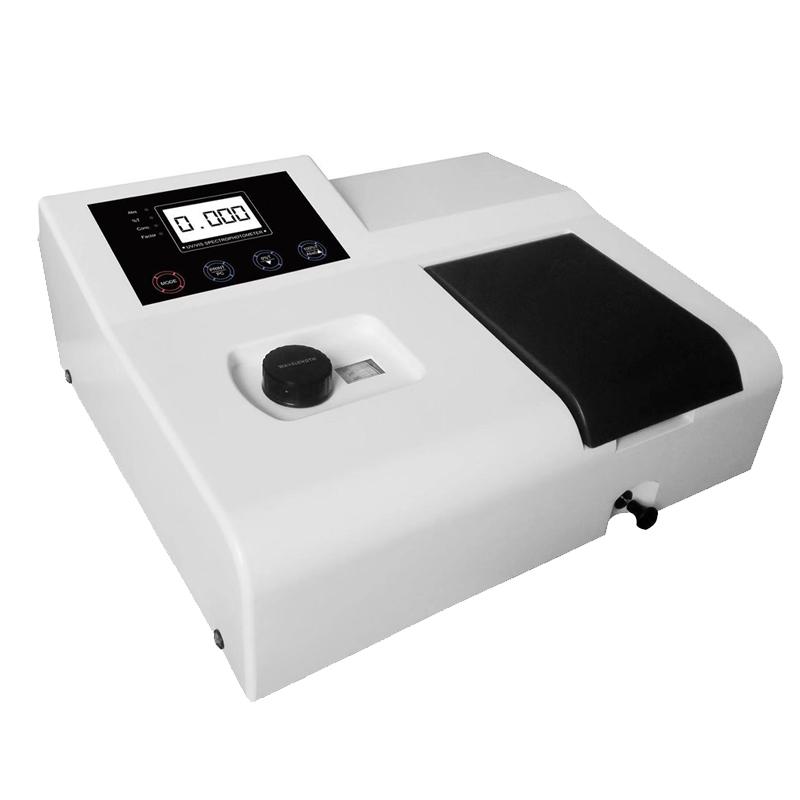

YOKE UV752 UV-Visible Spectrophotometer Wavelength 195~ 1020Nm Light spectrum bandwidth 5nm

Introduction

Yoke UV752 UV-visible Spectrophotometer can be widely used in medicine and health, clinical testing, biochemistry, petrochemical industry, environmental protection, quality control, judicial criminal investigation, inspection and quarantine forestry, geological exploration, food testing and other industries. It is commonly used in physical and chemical laboratories. One of the analytical instruments.

Features

1. The large sample chamber can accommodate 5-100mm cuvettes.

2. It can be directly connected to a dedicated printer (optional) to print data.

3. The key components are all imported with original packaging to ensure the accuracy and precision of the measurement.

4. Digital display of measured values.

5. The instrument adopts advanced microcomputer processing technology and is easy to operate.

6. The automatic light gate ensures the service life of the photoelectric sensor and makes the instrument test easier.

Key Function

Key Name Key Function Description

【MODE】A/T/C/F mode switching key

【PC】Print/online send data key

【↑/0%】Input data in C/F mode to increase/adjust 0% T key

【↓/100%】Input data in C/F mode to decrease/adjust transmittance to 100%T or absorbance to 0.000ABS key

Key function description

A: Measure the absorbance of the sample

T: Transmittance of the measured sample

C: Enter the F value to measure the concentration, or use the standard solution to calculate the F value

F: Enter the F value to measure the concentration

Series

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
