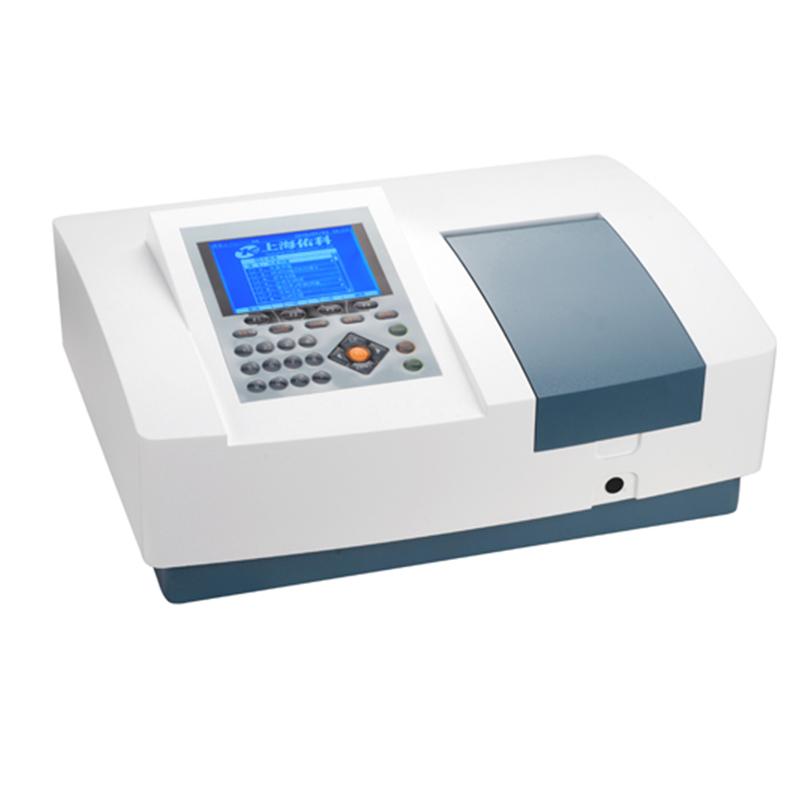

YouKe U4000 widescreen dual beam of light Spectrophotometer Wavelength range 190~1100nm
YouKe U4000 widescreen dual beam of light Spectrophotometer is a dual beam of light metering system, imported tungsten lamp and deuterium lamp source, U4000 Light spectrum Bandwidth of 2nm, can directly display the scanning pattern.
Yoke
U4000
-
YueFeng FSP6620 Flame Spectrophotometer Test Potassium/Sodium
$ 2092.00 -
YUEFENG FP6428 Flame photometer Na/Ca
$ 1439.00 -
JINGHUA 756CRT UV-Visible Spectrophotometer Light spectrum
$ 4423.00 -
YueFeng 752NPC Ultraviolet-visible spectrophoto-meter wavelength 190~960nm
$ 1019.00 -
JINGHUA UV1900 UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm
$ 3491.00
Introduction
Yoke U4000 widescreen dual beam Spectrophotometer adopts a new design of excellent optical system, high-performance holographic grating, to ensure the low stray light of the instrument, double beam light measurement system, with professional circuit measurement and control system, so that the instrument has a high degree of stability.
Features
1. The key components are imported components, and the new and unique optical system design makes the host of the instrument have excellent optical performance and metering performance, low stray light, high metering accuracy and stability, reliability, and high reliability.
2. The real dual-beam photometering system, with the professional circuit measurement and control system, makes the instrument have high reliability and extremely low noise.
3. The unique deuterium lamp and tungsten lamp installation, automatic switching of light source and automatic search for a good position design and Operating Mode, so that users can operate the instrument and maintain and replace the light source more convenient, correct and safe.
4、U4000The 320*240 dot matrix high-brightness LCD display is used to directly display the scanning spectrum, and the screen interface is simple and easy to use.
5. Excellent software design and compilation, so that the instrument has a strong spectral number processing function: automatic scanning measurement spectrum, multi-wavelength (1-3T) determination kinetic determination, 1-3 curve fitting, 1-4 derivative spectrum, access and display printing spectrum and analysis data.
6. Powerful software developed based on Windows platform, friendly interface and powerful functions, convenient for your storage output, convenient for office, and save to use.
7. 16-bit high-speed, high-precision A/D conversion, high precision of the instrument, fast response speed adopts the new ARM system, built-in Chinese and English operating system, the instrument can store massive data inside, and can also store and transfer data through USB interface.
8. External USB interface and RS232 interface, which can directly connect to monitors, PCs, printers and storage devices.

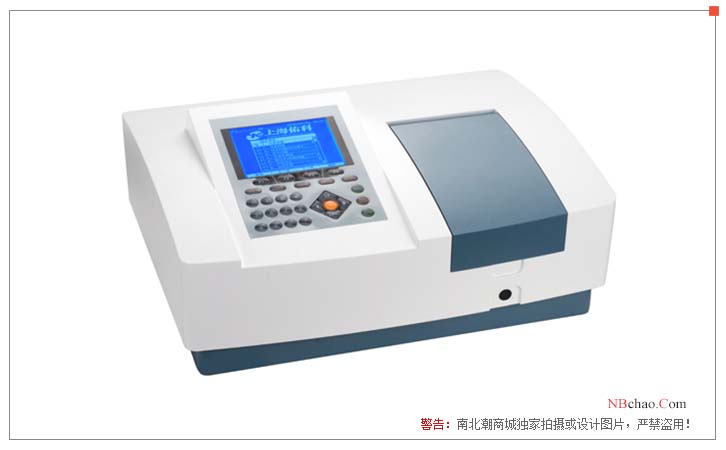

Pictures
Yoke U4000 SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Dual beam of light system |
| Light spectrum Bandwidth | 2nm |
| Wavelength Precision | +/- 0.1Nm (D2 656.1nm )， +/- 0.3nm full band |
| Wavelength Repeatability | ≤0.1nm |
| Photometric range | 0~200%T、-0.3~3A |
| Photometric Precision | ±0.002A(0~0.5A)、±0.004A(0.5~1A)、±0.2%T(0~100%T) |
| Luminosity Repeatability | ±0.001A(0~0.5A)；±0.002A(0.5~1A)；±0.15%T(0~100%T) |
| stray light | ≤0.05%T |
| keyboard | Membrane button |
| Interface | RS-232C Serial, USB Connectivity |
| monitor | 320 * 240-Bit highlight 6 * LCD display |
| Light source | Tungsten lamp, deuterium lamp |
| Detector | Imported silicon photodiode |
| Power Supply | AC 220V/50Hz 或 AC 110V/60Hz |
Yoke U4000 Spectrophotometer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
