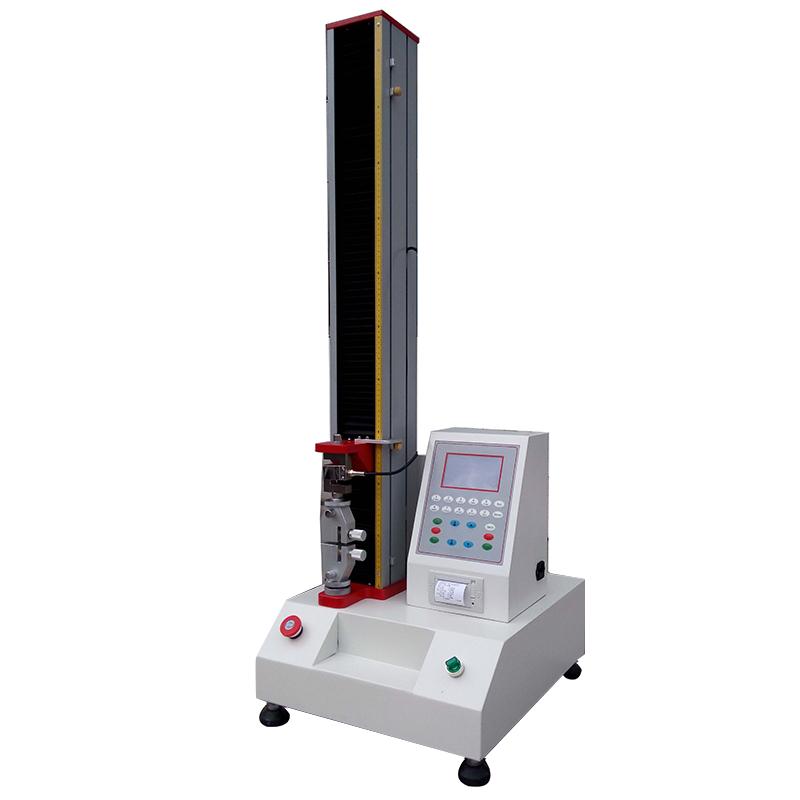

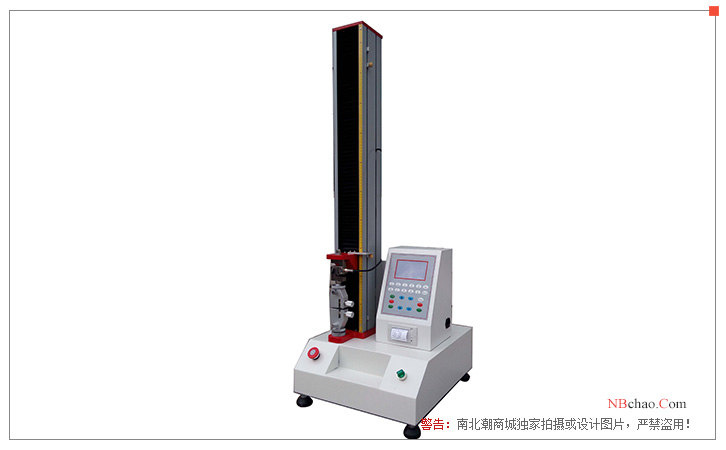

Huida HD-1003-B Zipper Compression Tensile Tester Load analysis 1/25000
Huida HD-1003-B zipper compression Tensile Tester is used for tensile, compressive, tensile, compression, bending, tear, flkn and other tests, HD-1003-B capacity of 50kg, using variable frequency motor.
Huida
HD-1003-B
-
HBO HDE-500 + HF-2 Electric Single Column Universal Testing Machine Double Guide Rod Structure Motor Drive
$ 893.00 -
Factory direct sales NBC-1024-3 Universal Testing Machine Metal Non-metallic material Mechanical performance test 10T
$ 7571.00 -
Lugong STX5000 Digital Display Single Arm Tensile Tester Single column tensile machine 5000N
$ 1193.00 -
HBO ZTD-50 Desktop Microcomputer Controlled Spring Tension and Compression Tester, Range 50N
$ 3269.00 -
Factory direct sales NBC-1024/BJ Double column Tensile machine Full digital control high-precision measurement
$ 3703.00
Introduction
Huida HD-1003-B zipper compression Tensile Testing Machine can test the physical properties of various materials and finished products and semi-finished products. You can choose a variety of different fixtures for tensile, compressive, holding, holding, bending, and tearing. Crack, peel, adhesion, shear and other tests. It is the testing and research equipment that is satisfactory for various factories, enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes and colleges and universities.
Application
HD-1003-B zipper compression Tensile Testing Machine is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber and plastics, paper products and color printing packaging, adhesive tape, turtle glue, bags and handbags, textiles Fiber, food, pharmaceutical and other industries.
plan
Huida HD-1003-B Zipper compression Tensile TesterSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 50kg |
| Load analysis | 1/25000 |
| Force value Accuracy | <0.5% |
| Force range | 0.5~100%F.S |
| Sensors Sensitivity | 1~20mV/V |
| Displacement error of indication | Better than ± 0.5% |
| effective travel | 700mm (including fixture) |
| Force unit | Including kgf, lbf, N, KN, KPa, Mpa various Measurement Units, users can also customize the required units |
| Motor type | Inverter motor |
| Dimensions | 43*43*110cm |
| Machine Weight | About 85kg |
| Power | 2PH，AC220V，50/60Hz，10A |
Huida HD-1003-B Zipper compression Tensile Tester Packing list
Host X1, power cord X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
