        Home> Microscope> SHSGBM> SHSGBM BM-20APHP Tablet PC Phase Contrast Microscope

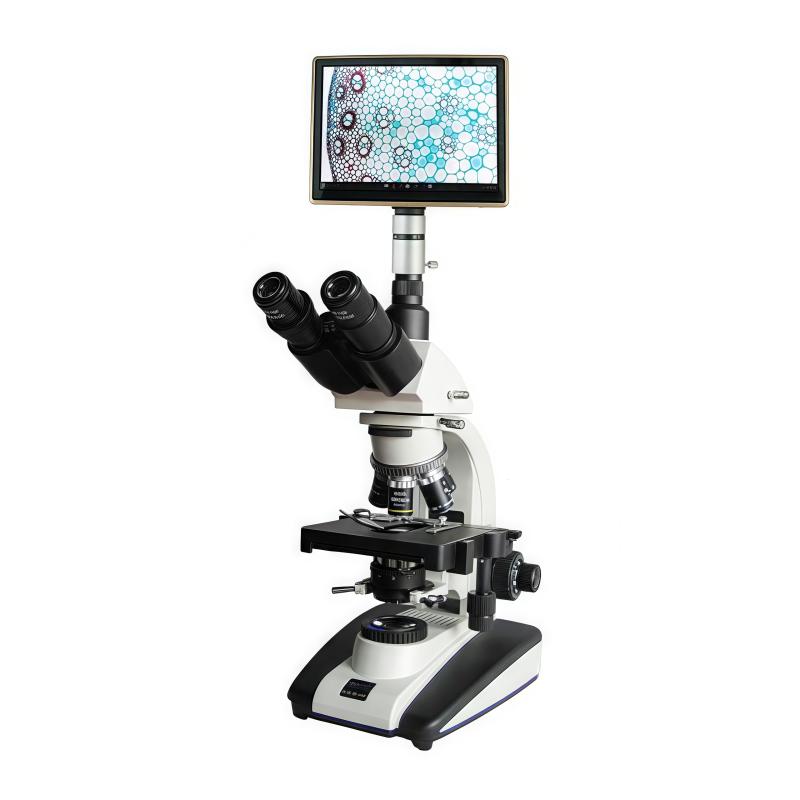

        SHSGBM BM-20APHP Tablet PC Phase Contrast Microscope

        Varnishing BM-20APHP Tablet Microscope 40X-1600X

        Can be equipped with vertical lighting devices, fluorescent devices and other auxiliary equipment, the use of electric light source, luminance can be continuously adjusted, hinged triocular barrel, 30 ° tilt, 360 degrees of free rotation.

        Brand
        SKU: NB044896
        China SHSGBM
        Stock
        Loading…
        Price
        $ 3307.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          SHSGBMLOGO

          SHSGBM shopSE

          Information
          Datasheet RFQ Contract
          What else did others buy
          Genuinegoods

          • SHSGBM BM-20APHP Tablet PC Phase Contrast MicroscopeOverview

          • Specifications
          • Comments
          • FAQs
          BM-20APHP
          Tablet PC Phase Contrast Microscope
          • Varnishing BM-20APHP Tablet Microscope 40X-1600X
          Can be equipped with vertical lighting devices, fluorescent devices and other auxiliary equipment, the use of electric light source, luminance can be continuously adjusted, hinged triocular barrel, 30 ° tilt, 360 degrees of free rotation.

          Introduction

          The BM-20APHP tablet UIS phase contrast microscope adopts UIS infinity optical technology and is highly expandable and can be equipped with auxiliary equipment such as vertical illumination devices and fluorescence devices. It is widely used in research fields such as histology, biology, bacteriology, pathology, medicinal chemistry, etc., as well as teaching work in colleges and universities, and clinical analysis and experiments in the medical community.

          This instrument uses an electric light source with continuously adjustable brightness. It has a hinged trinocular tube with a 30° tilt and 360° free rotation.

          Standard configuration

          eyepiece:

          categorygainField of view diameter
          Plan eyepiece10Xφ22mm
          16Xφ15mm

          Biological objective lens:

          categoryMagnificationnumerical apertureworking distance
          Infinity Plan
          Achromatic Objective          		4X0.120.00mm
          10X0.2513.50mm
          40X0.650.68mm
          100X (oil)1.250.20mm

          Phase contrast objective:

          categoryMagnificationnumerical apertureworking distance
          Infinity plan phase contrast objective4X0.120.00mm
          10X0.2513.50mm
          40X0.650.68mm
          100X (oil)1.250.20mm


          VS

          SHSGBM BM-20APHP Tablet PC Phase Contrast MicroscopeSpecifications

          LIST VALUE
          Mechanical barrel length Infinity system (∞)
          magnification 40X-1600X
          Stage size Double-decked mobile platform 155 × 145mm, moving range 80 × 50mm
          pupil distance 55-75mm
          Focusing device 30Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.002mm
          Phase contrast device BF and DF phase contrast condenser with dark field of view with variable bar
          condenser N.A.1.25 Adjustable medium Abemin field condenser with variable light bar
          Color filter Blue, yellow, green
          reservation device Reserved polarizer and upper filter fixture
          Light source 6V/20W halogen lamp, Kohler lighting, adjustable luminance
          Computer imagery system 9.7-Inch large-screen Android system tablet, MCL-Z adapter mirror

          SHSGBM BM-20APHP Tablet PC Phase Contrast Microscope Packing list

          host X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
